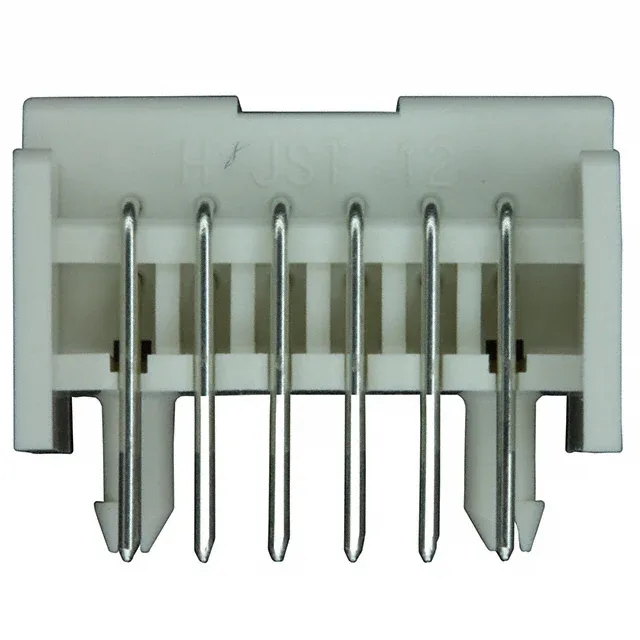

S12B-XADSS-N — JST product photo
JST

S12B-XADSS-N JST XAD Series 12-Pin Right Angle Header

MPNS12B-XADSS-N
Active

JST XAD series, S12B-XADSS-N, board-to-wire header, 12 positions, 2 rows, 0.098" (2.50mm) pitch, through-hole right angle, shrouded 4-wall, locking ramp, tin-plated male pins, 3A, 250V, UL94 V-0.

$1.7900Ref. price · indicative, final on quote
S12B-XADSS-N datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S12B-XADSS-N Technical Specifications
ParameterValue
SeriesXAD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.476\" (12.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.098\" (2.50mm)
Positions12
Row spacing - mating0.098\" (2.50mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

Right-angle through-hole for space-constrained boards

The 0.134" (3.40mm) post length is compatible with standard 1.6mm PCBs, and the 0.476" (12.10mm) insulation height provides clearance above the board. Compared to the 8-position S08B-XADSS-N or the 16-position S16B-XADSS-N(LF)(SN), this 12-position version fills a middle ground for applications needing exactly 12 circuits.

Note that this part is RoHS non-compliant, which may affect its use in markets or applications requiring RoHS conformity. Packaged in bulk, it is suited for high-volume assembly processes.

Mates with XAD series receptacle housings

This header mates with JST XAD series receptacle housings that accept female crimp terminals.

Frequently asked questions

Is S12B-XADSS-N RoHS compliant?

No, S12B-XADSS-N is listed as RoHS non-compliant. If your application requires RoHS conformity, consider the (LF)(SN) suffix variants in the XAD series.
