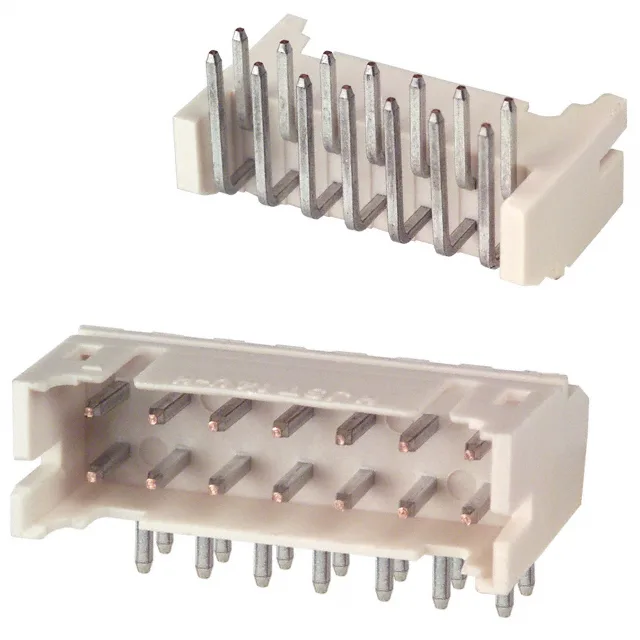

S14B-PHDSS JST PHD Header 14 Pos 2mm R/A Detent Lock

MPNS14B-PHDSS
Active

JST PHD series, Board to Cable/Wire, Header, Male Pin, 14 Positions, 2.00mm Pitch, Through Hole, Right Angle, Detent Lock, Tin Contacts, 3A, 250V, UL94 V-0

$0.7300Ref. price · indicative, final on quote
S14B-PHDSS datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S14B-PHDSS Technical Specifications
ParameterValue
SeriesPHD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.197\" (5.00mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin
Contact length - mating0.114\" (2.90mm)

Product details

Right-angle header for board-to-cable with detent lock

The S14B-PHDSS is a 14-position, 2.00mm pitch header from JST's PHD series, terminated through-hole in a right-angle orientation. The shrouded 4-wall housing and detent lock keep the mating receptacle seated under vibration — the lock clicks in without a secondary latch, which saves a step on the assembly line. The 0.079" (2.00mm) row spacing matches the pitch, so the board footprint stays tight — 14 positions in two rows fit a 7-per-side layout.

At 14 positions, this header sits between the 12-position S12B-PHDSS and the 16-position S16B-PHDSS in the same PHD series.

Frequently asked questions

Is S14B-PHDSS RoHS compliant?

No, S14B-PHDSS is listed as RoHS non-compliant. For a RoHS-compliant version, use the S14B-PHDSS(LF)(SN) variant, which is otherwise identical.

What is the mating connector for S14B-PHDSS?

The S14B-PHDSS mates with JST PHD series crimp-style receptacle housings (e.g., PHR-14) using the appropriate crimp terminals. The detent lock on the header engages with the latch on the receptacle housing.
