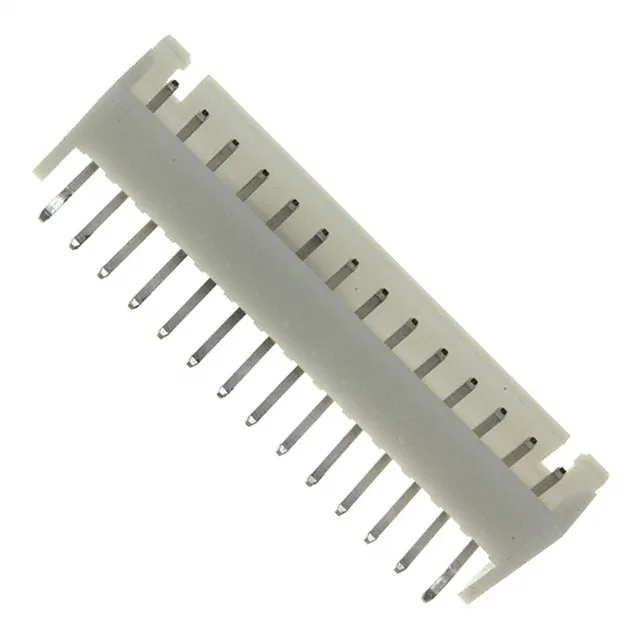

S14B-XH-A — JST product photo
JST

S14B-XH-A JST XH Header 14 Pos 2.5mm R/A Through Hole

MPNS14B-XH-A
Active

JST Sales America Inc., XH series, Board to Cable/Wire Header, 14 positions, 2.50 mm pitch, Through Hole Right Angle, Shrouded - 4 Wall, Detent Lock, 3 A, 250 V, UL94 V-0

$0.8300Ref. price · indicative, final on quote
S14B-XH-A datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S14B-XH-A Technical Specifications
ParameterValue
SeriesXH
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.240\" (6.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions14
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

14-position right-angle header for wire-to-board

Pitch, position count, and orientation

For designs needing one more circuit, the 15-position sibling S15B-XH-A-1 shares the same pitch, orientation, and current rating.

This header mates with JST XH series crimp-style receptacle housings using the matching crimp terminal. The press-fit solder termination requires a through-hole PCB with plated holes typical for 2.50 mm pitch headers. The detent lock engages with the mating receptacle latch for a vibration-resistant connection.

Frequently asked questions

What is the pitch of S14B-XH-A?

The pitch is 0.098" (2.50 mm), which is the standard for JST XH series headers.

S14B-XH-A vs S15B-XH-A – what are the differences?

The S14B-XH-A has 14 positions; the S15B-XH-A-1 has 15 positions. Both share the same 2.50 mm pitch, right-angle orientation, 3 A rating, and detent lock.
