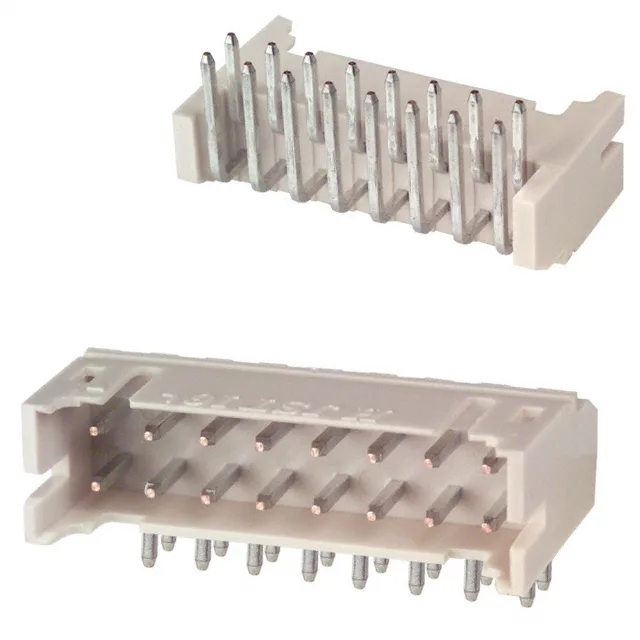

S16B-PHDSS — JST product photo
JST

JST S16B-PHDSS Header, 16 Pos, 2.00 mm Pitch, Right Angle

MPNS16B-PHDSS
Active

JST PHD series, Board to Cable/Wire, Header, Male Pin, 16 Positions, 2.00 mm pitch, Through Hole, Right Angle, Detent Lock, 3 A, 250 V, UL94 V-0.

$0.7300Ref. price · indicative, final on quote
S16B-PHDSS datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S16B-PHDSS Technical Specifications
ParameterValue
SeriesPHD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.197\" (5.00mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin
Contact length - mating0.114\" (2.90mm)

Product details

2.00 mm pitch, 16-position, right-angle header

The through-hole right-angle orientation places the mating face perpendicular to the board, which suits edge-mounted cable exits in compact enclosures.

Current and voltage envelope

The tin-plated contacts are suited for moderate mating cycle duty in indoor environments.

Mating half and build-to-print

Mates with JST PHD series crimp-style receptacle housings (e.g., PHR-xx) using the appropriate crimp terminals (SPHD-xxT-xx). Build-to-print needs both halves—the header alone is the board-mount side.

Frequently asked questions

What is the mating connector for S16B-PHDSS?

The S16B-PHDSS mates with JST PHD series receptacle housings (such as PHR-16) loaded with crimp terminals (SPHD-001T-P0.5 or similar). The mating half is a separate order.

Is S16B-PHDSS RoHS compliant?

No, this part is listed as RoHS non-compliant. For a RoHS-compliant alternative in the same series, consider the S14B-PHDSS(LF)(SN) or other (LF)(SN) suffix variants.

What is the current rating of S16B-PHDSS?

Rated 3 A per contact at 250 V. Derate current if operating near the upper end of the -25°C to 85°C temperature range.
