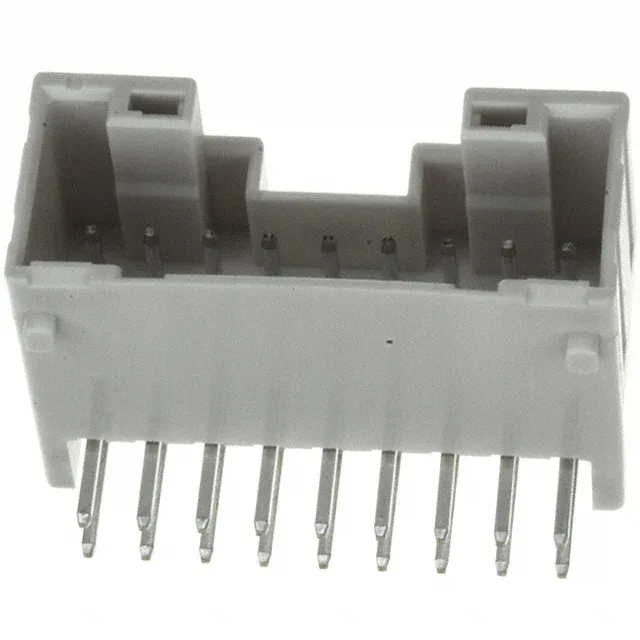

S18B-PUDSS-1 JST PUD Header 18 Pos 2mm Right Angle

MPNS18B-PUDSS-1
Active

JST PUD series, S18B-PUDSS-1, Board to Cable/Wire header, 18 circuits, 2.00mm pitch, through-hole right-angle, shrouded 4-wall, latch holder, tin-plated contacts, 3 A, 250 V, UL94 V-0.

$0.8500Ref. price · indicative, final on quote
S18B-PUDSS-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S18B-PUDSS-1 Technical Specifications
ParameterValue
SeriesPUD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.335\" (8.51mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions18
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin

Product details

Right-angle 18-position header for 2.00mm wire-to-board

The S18B-PUDSS-1 is a JST PUD series header with 18 positions on a 2.00mm pitch, arranged in two rows. It mounts through-hole, right-angle to the board, so the mated cable exits parallel to the PCB — useful in tight enclosures where vertical clearance is limited. The header is fully shrouded on all four walls, which protects the male pins during handling and guides the mating receptacle into alignment. A latch holder on the shroud locks the pair together, resisting vibration and accidental disconnection.

Current, voltage, and temperature envelope

Each contact is rated 3 A at 250 V.

Sourcing and compliance status

Current pricing and lead time confirmed at quote time.

Peer position count comparison

The PUD series offers the same 2.00mm pitch, right-angle orientation, and latch holder in 14-, 16-, and 22-position variants.

Frequently asked questions

What connector mates with S18B-PUDSS-1?

This header mates with the JST PUD series crimp-style receptacle housing. The latch holder on the header engages the matching lock on the receptacle side for a vibration-resistant connection.

Is S18B-PUDSS-1 RoHS compliant?

No, this part is listed as RoHS non-compliant. If your application requires RoHS conformance, check the lead-free variant suffix in the PUD series.

How can I order S18B-PUDSS-1?

Sourced per RFQ against your BOM quantity. Availability and pricing confirmed at quote time.
