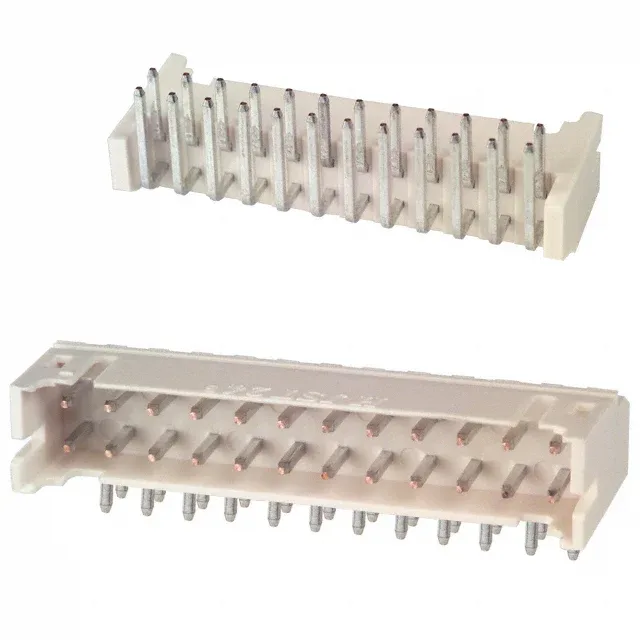

S24B-PHDSS — JST product photo
JST

S24B-PHDSS JST PHD 2mm 24-Pin Right-Angle Header

MPNS24B-PHDSS
Active

JST Sales America Inc., PHD series, Board to Cable/Wire, Header, Male Pin, 24 Positions, 2.00mm Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Detent Lock, Tin Contacts, 3A, 250V, UL94 V-0

$1.1200Ref. price · indicative, final on quote
S24B-PHDSS datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S24B-PHDSS Technical Specifications
ParameterValue
SeriesPHD
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.197\" (5.00mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions24
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingTin
Contact length - mating0.114\" (2.90mm)

Product details

24-Position Right-Angle Header for Board-to-Cable

The JST PHD series S24B-PHDSS is a 24-position, 2.00mm pitch, right-angle through-hole header. It mates with the corresponding PHD crimp-style receptacle housing, forming a secure board-to-cable/wire connection. Each male pin is rated 3A at 250V, with tin-plated mating surfaces. The full 4-wall shrouding and detent lock protect the pins and hold the cable-side housing engaged under vibration.

At 2.00mm pitch with dual rows spaced 2.00mm apart, this header packs 24 circuits into a compact footprint. Compared to the 20-position sibling S20B-PHDSS, the S24B-PHDSS adds four circuits on the same pitch and row spacing, extending the same connector footprint for higher I/O density.

Frequently asked questions

Is S24B-PHDSS RoHS compliant?

No. The S24B-PHDSS is listed as RoHS non-compliant. The RoHS-compliant equivalent is S24B-PHDSS(LF)(SN), which shares the same 24 positions, 2.00mm pitch, right-angle through-hole design, and 3A/250V rating.

What is the mating connector for S24B-PHDSS?

This header mates with the JST PHD series crimp-style receptacle housing. The receptacle uses a detent lock to engage with the header's locking feature, and accepts the appropriate PHD crimp terminals for the wire gauge.
