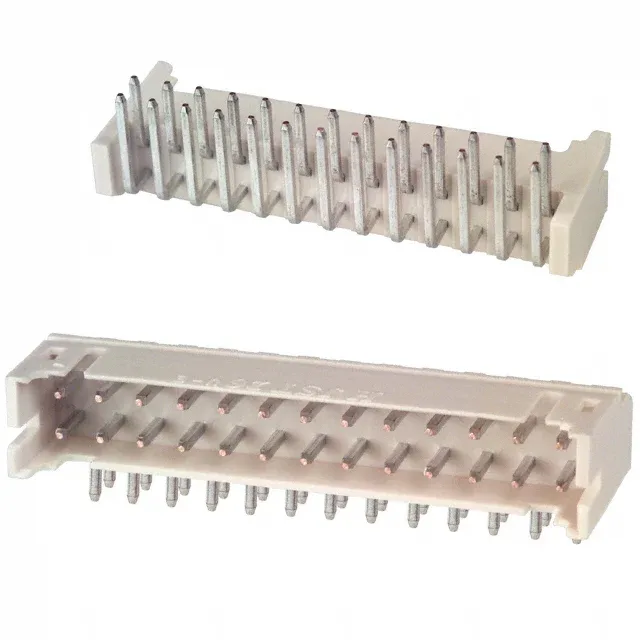

JST PHD series header, order code S26B-PHDSS, 26 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-lead mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | PHD |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.114\" (2.90mm) |
The S26B-PHDSS is the 26-circuit member of JST's PHD series board-to-wire header line. It carries tin-lead plated mating contacts rated 3 A and 250 V, in a shrouded through-hole right-angle package with a detent lock.
