JST S26B-XADSS-N(LF)(SN) — Pin Headers, Sockets & Housings

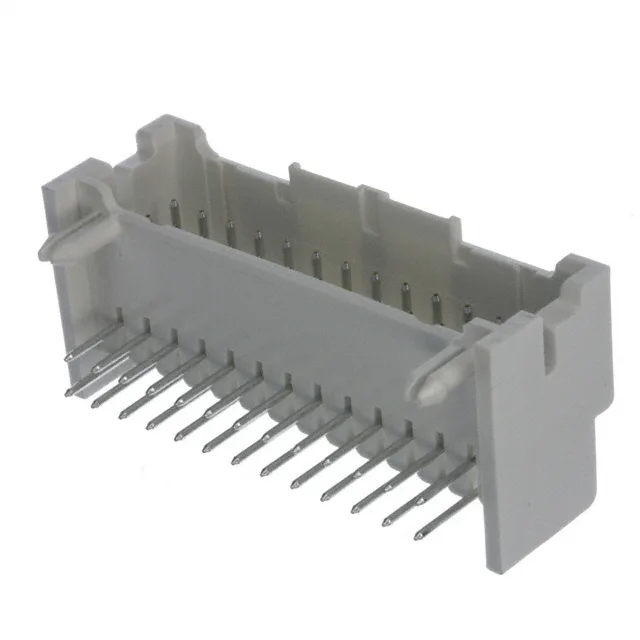

JST S26B-XADSS-N(LF)(SN)

MPNS26B-XADSS-N(LF)(SN)
Active
$3.3300Ref. price · indicative, final on quote
JST S26B-XADSS-N(LF)(SN) datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

S26B-XADSS-N(LF)(SN) key specifications
ParameterValue
SeriesXAD
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.476\" (12.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled

All specifications

S26B-XADSS-N(LF)(SN) additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.098\" (2.50mm)
Positions26
Row spacing - mating0.098\" (2.50mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin
