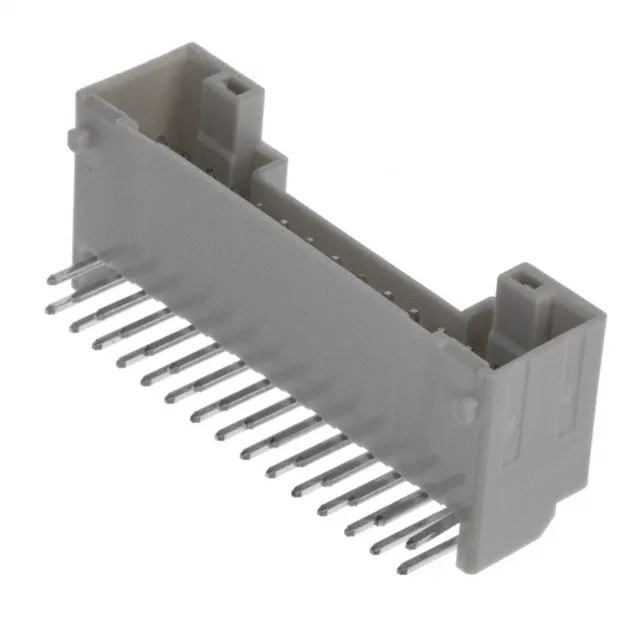

JST PUD header, order code S30B-PUDSS-1(LF)(SN), 30 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | PUD |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
The S30B-PUDSS-1(LF)(SN) is the 30-circuit member of JST's PUD board-to-cable/wire header line. It carries tin-plated mating contacts rated 3 A at 250 V and mounts through-hole right-angle with solder termination.
The part is listed with UL94 V-0 flammability rating for the housing material. RoHS and REACH compliance documentation is available from the manufacturer.
