32-circuit right-angle header
The S32B-PHDSS(LF)(SN) is the 32-circuit member of JST's PHD series board-to-cable/wire header line. It carries tin-plated contacts rated 3 A at 250 V and mounts through-hole right-angle with solder termination.

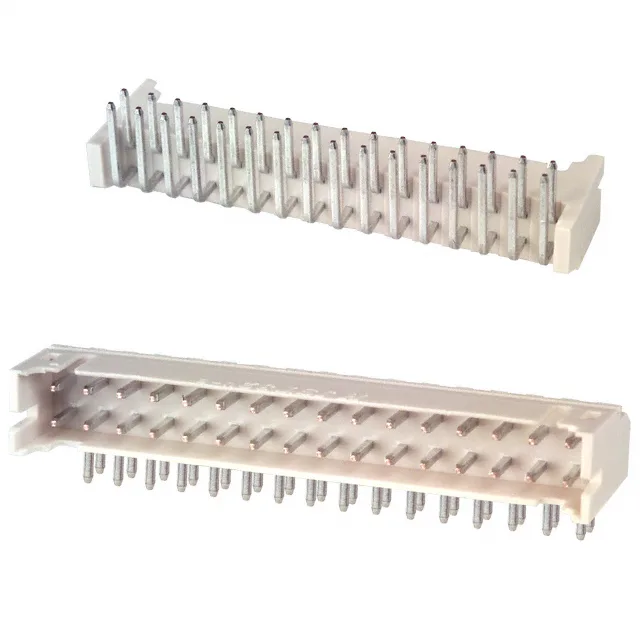

S32B-PHDSS(LF)(SN) Header, 32 Pos, 2.00mm Pitch, PHD Series
MPNS32B-PHDSS(LF)(SN)
Active
JST PHD series header, order code S32B-PHDSS(LF)(SN), 32 positions, dual row, 0.079" (2.00mm) pitch, 3 A, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination.
$1.2300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PHD |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 32 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
