JST XH series header, order code S3B-XH-SM4-TB, 3 positions, single row, 2.50 mm pitch, 3 A, 250 V, tin-plated mating contacts, surface-mount right-angle, solder termination.

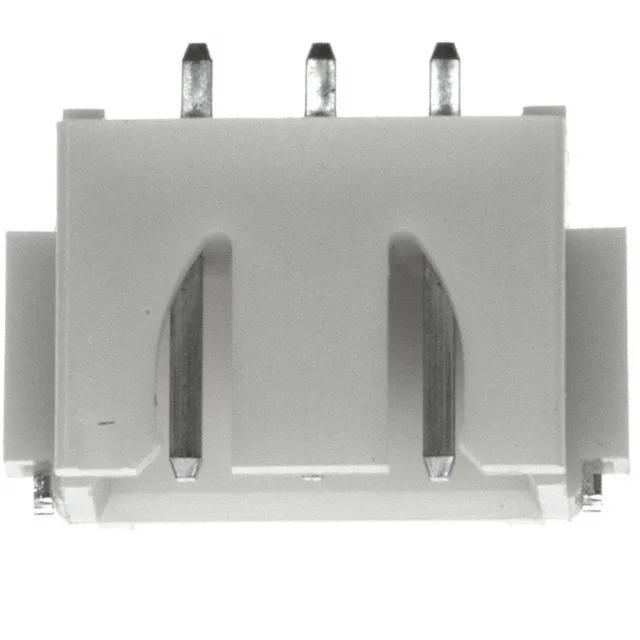

JST S3B-XH-SM4-TB Header, 3-Pos 2.50mm SMT Right-Angle
MPNS3B-XH-SM4-TB
Active
JST XH series header, order code S3B-XH-SM4-TB, 3 positions, single row, 2.50 mm pitch, 3 A, 250 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
$0.7500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XH |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the connector style and series for S3B-XH-SM4-TB?
It is a Board to Cable/Wire style header in the JST XH series.
