JST ZH series, Board to Cable/Wire, 7 Positions, 1.50mm Pitch, Surface Mount Right Angle Header, Tin Plated Contacts, Detent Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | ZH |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.146\" (3.70mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Number of rows | 1 |
| Pitch - mating | 0.059\" (1.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Number of positions loaded | All |

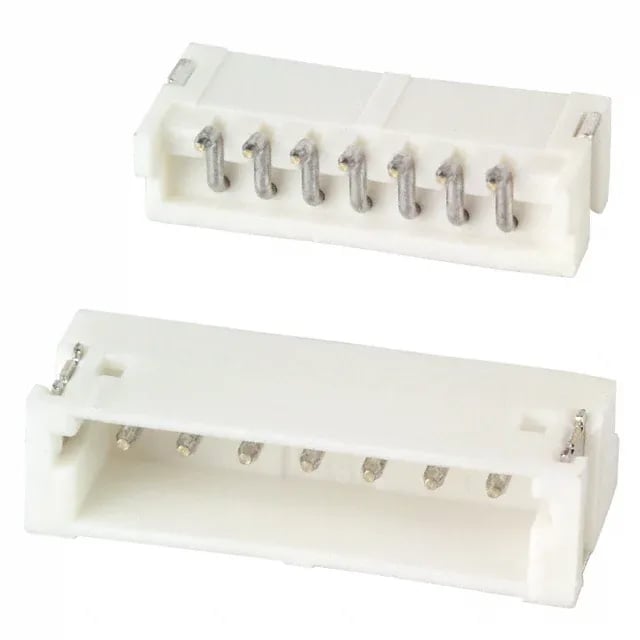

The S7B-ZR-SM4A-TF is a 7-position, single-row, surface-mount right-angle header from JST's ZH series.
Solder retention features on the SMD tails hold the header in place during reflow — the part stays put through the solder paste reflow profile without shifting.
This header mates with a JST ZH series receptacle housing that accepts crimp terminals. The mating half uses the same 1.50mm pitch and detent lock. Confirm the wire gauge and terminal part number from the ZH series crimp terminal family.
Yes, S7B-ZR-SM4A-TF is RoHS compliant per the manufacturer's listing.
