JST S8B-XH-A(LF)(SN) — Pin Headers
JST

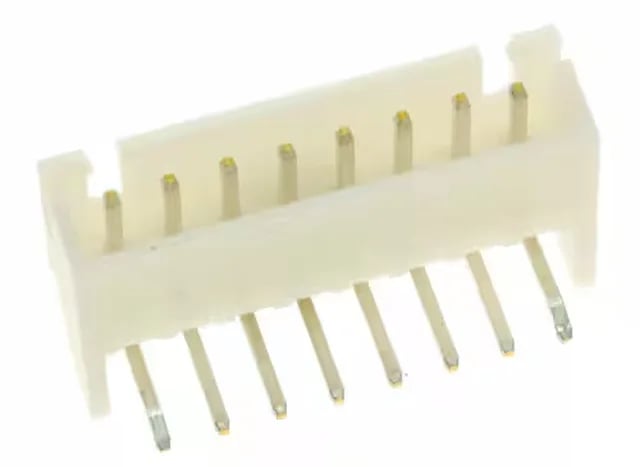

JST S8B-XH-A(LF)(SN) 8-Pin Right-Angle Header, 2.50mm Pitch

MPNS8B-XH-A(LF)(SN)
Active

JST XH series, 8-position single-row right-angle header, 2.50mm pitch, 3 A, 250 V, tin-plated male pins, shrouded 4-wall housing, detent lock, UL94 V-0.

$0.4900Ref. price · indicative, final on quote
S8B-XH-A(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

S8B-XH-A(LF)(SN) Technical Specifications
ParameterValue
SeriesXH
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.240\" (6.10mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Number of rows1
Pitch - mating0.098\" (2.50mm)
Positions8
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin
Number of positions loadedAll

Product details

Board-to-Wire Routing with a Right-Angle Header

The S8B-XH-A(LF)(SN): For field-service applications with frequent disconnect, a gold-plated variant would extend the cycle life.

No end-of-life notice or successor has been issued — it remains a current catalog item in the XH series.

This header mates with JST XH series crimp-style receptacle housings using the appropriate female crimp terminals. Termination is press-fit, solder — the square pins are inserted through the PCB and wave-soldered. The 0.134" (3.40mm) post length provides adequate standoff for solder fillet formation on standard 1.6mm boards.

Frequently asked questions

What is the pitch of the JST S8B-XH-A(LF)(SN)?

The mating pitch is 0.098" (2.50mm), which sets the PCB hole pattern and the spacing between adjacent signal wires in the harness.
