JST Sales America Inc. ZE series, Board to Cable/Wire, Header, Surface Mount, Right Angle, 2 Positions, 0.059" (1.50mm) Pitch, Solder, Locking Ramp, Tin Contacts, UL94 V-0, Natural
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |

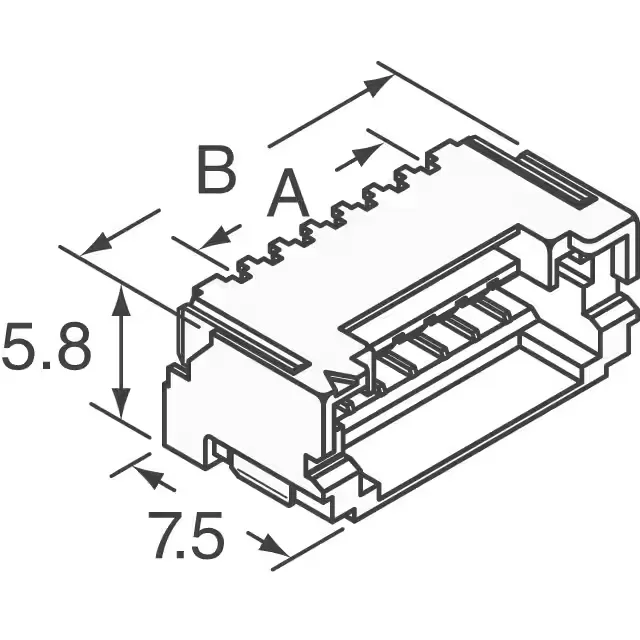

| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The SM02B-ZESS-TB(LF)(SN) is electrically and mechanically identical to the SM03B-ZESS-TB(LF)(SN) — same 1.50 mm pitch, same 2 A/100 V rating, same tin plating, same locking ramp — except for the position count: 2 circuits vs 3 circuits. If your BOM calls for 2 positions, this is the correct part; the 3-position version is a different order code and won't fit a 2-position footprint.
The mating half is a ZE series crimp receptacle housing with 2 circuits at 1.50 mm pitch. The exact order code depends on whether you need a single-row or dual-row receptacle — check the ZE series catalog for the correct housing and terminal part numbers.
Yes, it is listed as ROHS3 Compliant.
