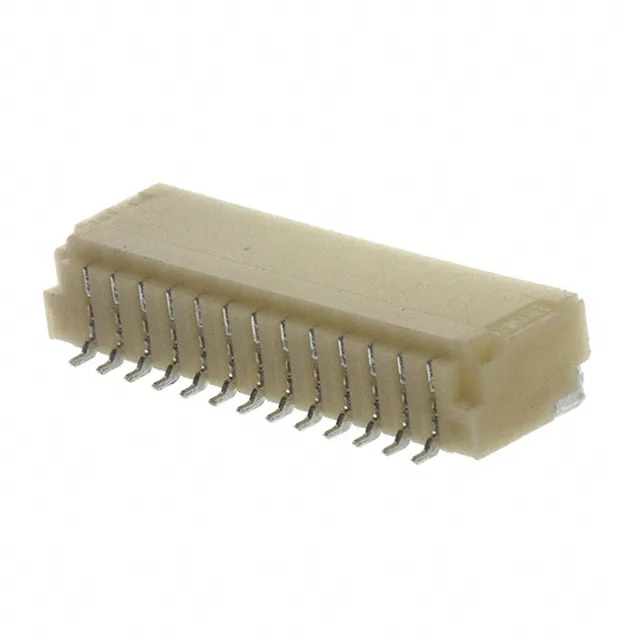

SM13B-SRSS-TB JST 1.00mm Pitch Header, 13 Pos

MPNSM13B-SRSS-TB
Active

JST SH/SR series, SM13B-SRSS-TB, Board to Cable/Wire header, 13 positions, 1.00mm pitch, Surface Mount Right Angle, shrouded 4-wall, tin contacts, 1A, 50V, UL94 V-0, Solder Retention

$1.2700Ref. price · indicative, final on quote
SM13B-SRSS-TB datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM13B-SRSS-TB Technical Specifications
ParameterValue
SeriesSH/SR
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating50V
Current rating1A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.114\" (2.90mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.039\" (1.00mm)
Positions13
Contact finish - postTin
Contact finish - matingTin

Product details

1.00 mm pitch, 13 positions, right-angle SMT — the board-fit anchor

The SM13B-SRSS-TB: JST SH/SR series header, 13 circuits on 1.00 mm pitch — the 0.039" centreline matches the SR-series receptacle, so the board footprint is fixed once you pick the position count.

1 A per contact, tin-on-tin — signal-duty, not power

The tin-on-tin interface is fine for moderate mating cycles (tens to low hundreds) in indoor, non-corrosive environments. Operating temperature from -25°C to 85°C covers most consumer, commercial, and light industrial enclosures. Compared to the 12-position sibling (SM12B-SRSS-TB), this 13-position variant adds one circuit at the same pitch and current — the board layout just extends the pattern by one position.

Frequently asked questions

Is SM13B-SRSS-TB RoHS compliant?

No, SM13B-SRSS-TB is listed as RoHS non-compliant. If your BOM requires RoHS, the sibling SM13B-SRSS-TB(LF)(SN) is the direct replacement — same pitch, same position count, same form factor.

What is the mating connector for SM13B-SRSS-TB?

This header mates with the JST SR-series receptacle housing and crimp terminals. The 1.00 mm pitch, single-row, push-pull fastening type defines the mating half — look for SR-series receptacles with the same 13-position count.
