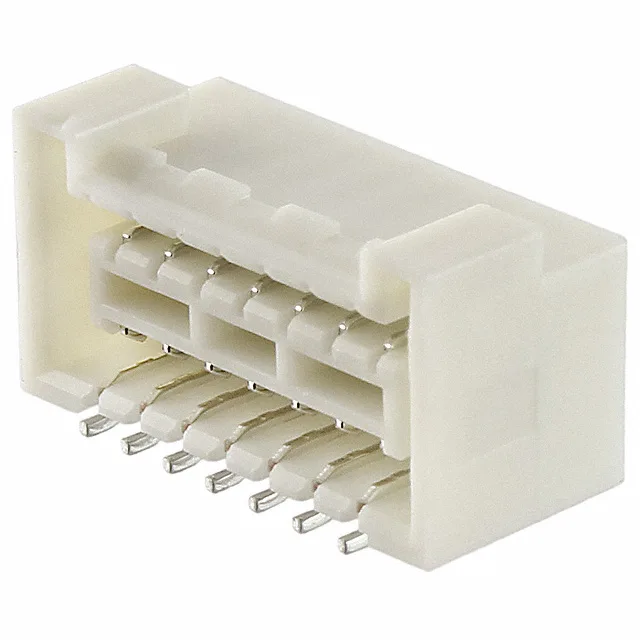

SM14B-ZPDSS-TF JST ZPD Header SMD R/A 14 Pos 1.5mm

MPNSM14B-ZPDSS-TF
Active

JST ZPD series, SM14B-ZPDSS-TF, board-to-cable/wire header, 14 positions, 1.50 mm pitch, surface mount right-angle, shrouded 4-wall, locking ramp, tin-plated contacts, 2 A, 100 V, UL94 V-0, natural insulation.

$1.5300Ref. price · indicative, final on quote
SM14B-ZPDSS-TF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SM14B-ZPDSS-TF Technical Specifications
ParameterValue
SeriesZPD
GenderOuter Shroud Contact
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.309\" (7.85mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeRectangular
Rows2
Pitch0.059\" (1.50mm)
Positions14
Contact finish - postTin
Contact finish - matingTin

Product details

14-position SMD right-angle header with 1.50 mm pitch

Locking ramp and shrouding for vibration-prone assemblies

Unlike a simple unshrouded header, the SM14B-ZPDSS-TF uses a shrouded 4-wall housing and a locking ramp.

Active production with RoHS compliance note

Sourcing is handled per RFQ: confirm current pricing and availability at quote time.

Mating and termination basics

This header mates with a JST ZPD series receptacle (crimp-style, wire-to-board). The termination is solder — specifically, surface-mount reflow for the right-angle tails.
