JST ZE series, Board to Cable/Wire, Header, 16 positions, 1.50 mm pitch, Surface Mount Right Angle, Locking Ramp, Tin contacts, 2 A, 100 V, UL94 V-0, Active, RoHS
| Parameter | Value |
|---|---|
| Series | ZE |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |

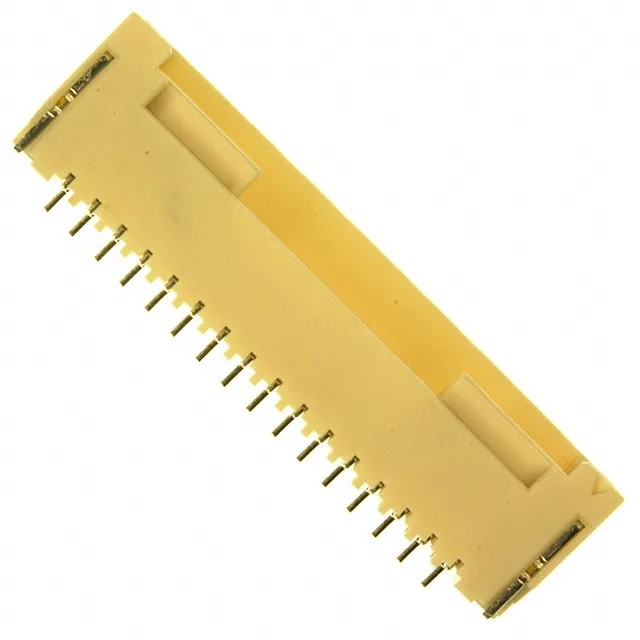

The SM16B-ZESS-TB is a 16-position, single-row header from JST's ZE series, pitched at 1.50 mm for board-to-cable/wire connections. The locking ramp fastening type means the mating housing clicks into place and resists vibration-induced disconnect.
The SM16B-ZESS-TB mates with the JST ZE series crimp receptacle housing (e.g., ZE-16P-N) and the appropriate crimp terminals (e.g., SZE-002T-P0.3). The locking ramp on the header engages the latch on the housing for a vibration-resistant connection.
