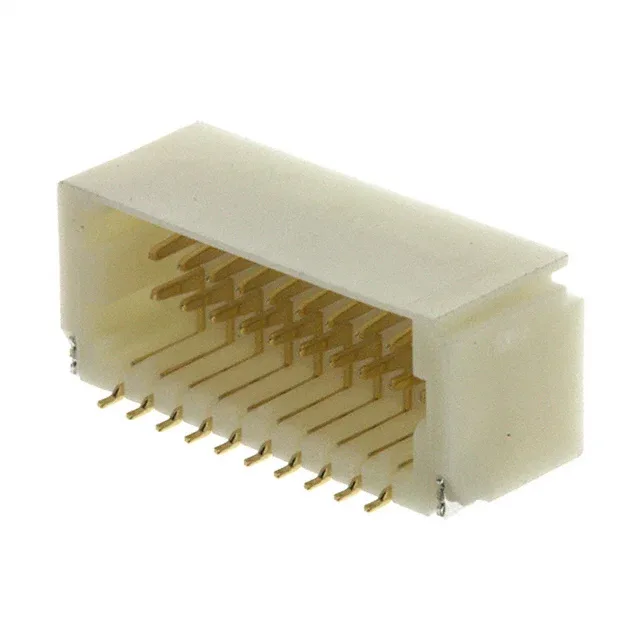

JST Sales America Inc., SHD series, Board to Cable/Wire header, SM20B-SRDS-G-TF: 20 positions, 2 rows, 0.039" (1.00 mm) pitch, surface mount right angle, shrouded 4-wall, gold-plated male pins, 1 A, 50 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | SHD |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 20 |
| Contact finish - mating | Gold |
The SM20B-SRDS-G-TF is a JST SHD series header, 20 positions in two rows at 0.039" (1.00 mm) pitch, designed for board-to-cable/wire interconnects. Operating temperature spans -25°C to 85°C.
The base product number is SM20B-SR.
The mating pitch is 0.039" (1.00 mm). This is the centre-to-centre spacing between adjacent pins in a row, and it determines the PCB footprint and the ribbon conductor spacing for any IDC termination.
No. The SM20B-SRDS-G-TF is listed as RoHS non-compliant. If your application requires RoHS compliance, check the lead-free variant SM20B-SRDS-G-TF(LF)(SN) which carries the same electrical ratings.
