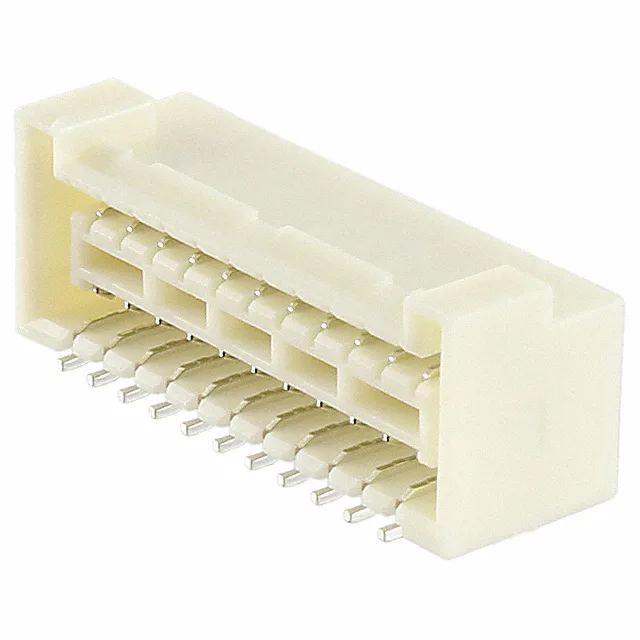

JST ZPD series, 22-position, 1.50mm pitch, right-angle SMT header, shrouded 4-wall, locking ramp, tin-plated contacts, 2A per contact at 100V, UL94 V-0, -25°C to 85°C.
| Parameter | Value |
|---|---|
| Series | ZPD |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.309\" (7.85mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 22 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The SM22B-ZPDSS-TF: The shrouded 4-wall housing and locking ramp secure the mating receptacle against vibration — a half-turn loose is not a problem here, unlike some circulars.
This header mates with JST ZPD series crimp-style receptacle housings. The 1.50mm pitch and 22-position count are specific to the ZPD family — confirm the mating receptacle part number for your harness.
This header mates with JST ZPD series crimp receptacle housings. The 1.50mm pitch and 22-position count are specific to the ZPD family. Use the matching receptacle part number for your harness build.
