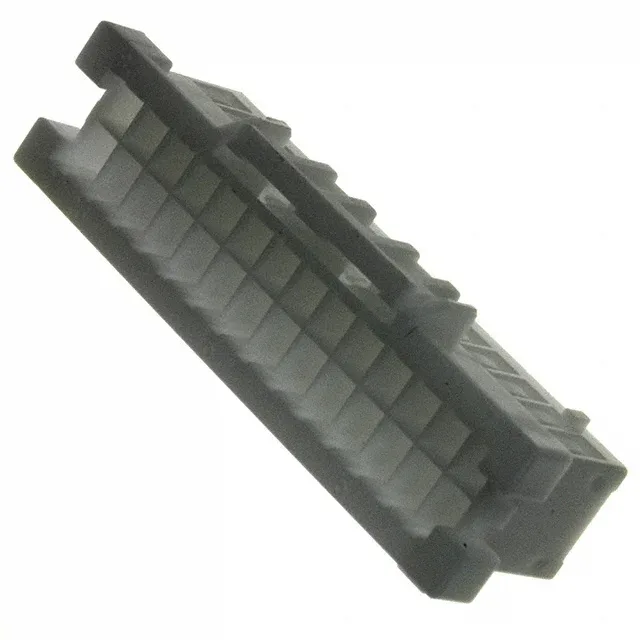

JST XAD series receptacle housing, XADRP-28V, 28 positions, 2 rows, 0.098" (2.50mm) pitch, 0.098" (2.50mm) row spacing, free hanging (in-line), crimp termination, latch lock, natural, bulk.
| Parameter | Value |
|---|---|
| Series | XAD |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -25°C~85°C |
| Color | Natural |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Row spacing | 0.098\" (2.50mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 28 |
The 0.098" (2.50mm) pitch and matching row spacing give a compact dual-row layout that fits 28 circuits into a footprint smaller than a standard 0.100" header array.
If you need fewer circuits, the 22-position XADRP-22V is the next step down. All use the same crimp terminals and mate with the same XAD series pin headers, so swapping position counts within the family doesn't change your tooling or wire prep.
No. The housing ships without contacts — you order the JST female socket crimp terminals separately for your wire gauge.
Both the pitch between positions and the row spacing are 0.098" (2.50mm), giving a compact dual-row layout.
It mates with the corresponding XAD series pin header (male pin) of the same 28-position count and 2.50mm pitch. The latch lock on the housing engages with the header's locking ramp.
