JST XAP-10V-1 XA Series Receptacle Housing, 10 Pos, 2.50mm

MPNXAP-10V-1
Active

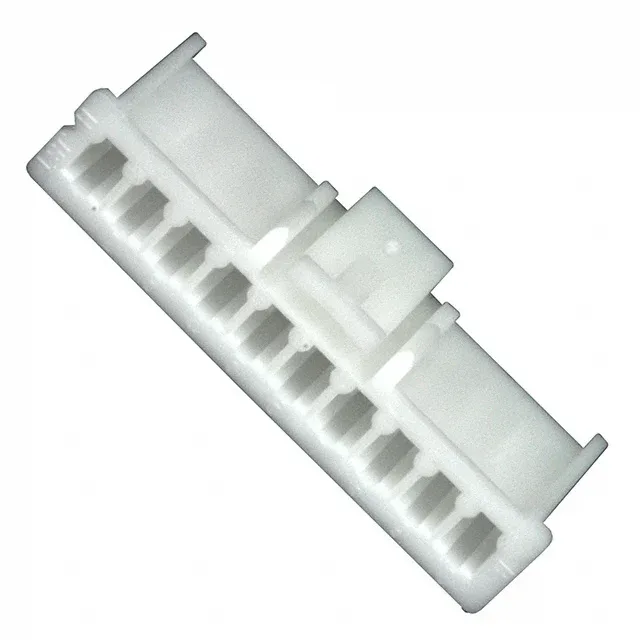

JST XA series receptacle housing, XAP-10V-1, 10 positions, 1 row, 2.50mm pitch, natural PA66, latch lock, free-hanging, crimp termination, contacts not included.

$0.2900Ref. price · indicative, final on quote
XAP-10V-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

XAP-10V-1 Technical Specifications
ParameterValue
SeriesXA
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions10

Product details

The JST XAP-10V-1 is a 10-position receptacle housing from the XA series, built on a 2.50mm pitch in a single-row layout.

What contacts does this housing take?

The XAP-10V-1 accepts JST XA series female socket crimp terminals (order separately — the housing ships empty). The 2.50mm pitch gives enough room for hand or automated crimp tooling without crowding adjacent wires.

What does the 10-position count mean for the BOM?

The 10-position count matches a 10-circuit wire harness or a 10-pin header on the board.

Temperature range and material

The natural colour is the raw nylon — no added pigment. ROHS3 compliant per the lifecycle record.

Frequently asked questions

What contacts fit XAP-10V-1 housing?

The XAP-10V-1 accepts JST XA series female socket crimp terminals. The housing ships without contacts — terminals must be ordered separately. The contact termination is crimp, and the terminal mates with the corresponding pin header.
