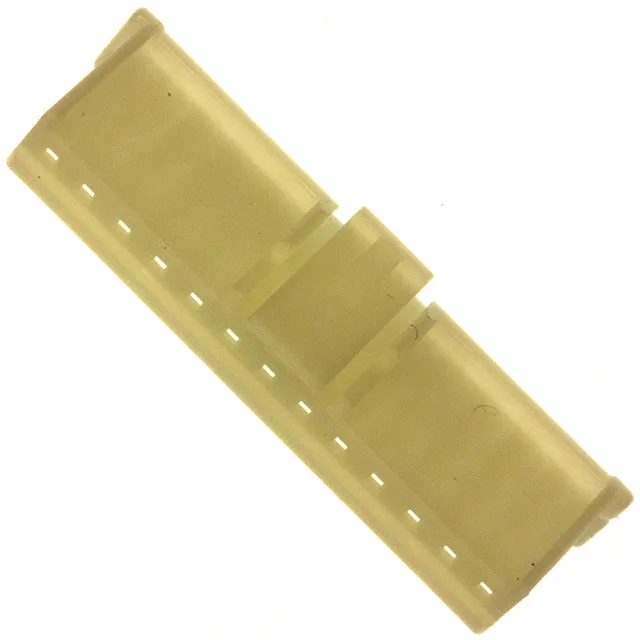

JST XAP-13V-1 Receptacle, 13 Pos, 2.50mm, Active

MPNXAP-13V-1
Active

JST XA series receptacle, 13 positions, 1 row, 2.50mm pitch, crimp termination, free-hanging, latch lock, natural PA66, contacts not included.

$0.3100Ref. price · indicative, final on quote
XAP-13V-1 datasheet
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

XAP-13V-1 Technical Specifications
ParameterValue
SeriesXA
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions13

Product details

XA Series 13-Position Receptacle Housing

The JST XAP-13V-1 is a 13-circuit receptacle housing from the XA series, designed for free-hanging wire-to-board or wire-to-wire harness applications.

If your design calls for 12 circuits, the 13-position housing leaves an unused cavity — mechanically fine but adds a dead wire position. If you need 13 circuits, this is the correct housing; there is no 14-position sibling in the XA single-row receptacle family that would accept the same header footprint.

The XAP-13V-1 is listed as Active, meaning it is a current production part with no announced end-of-life.

Frequently asked questions

Does the JST XAP-13V-1 include contacts?

No. The XAP-13V-1 is a housing only — contacts are not included. You need to order the matching female crimp terminals (JST SXA series or equivalent) separately and terminate them to your wire before insertion.

What is the pitch of the JST XAP-13V-1?

The pitch is 0.098" (2.50mm). This is the centre-to-centre spacing between cavities, which must match the mating header's pin spacing for the pair to engage.
