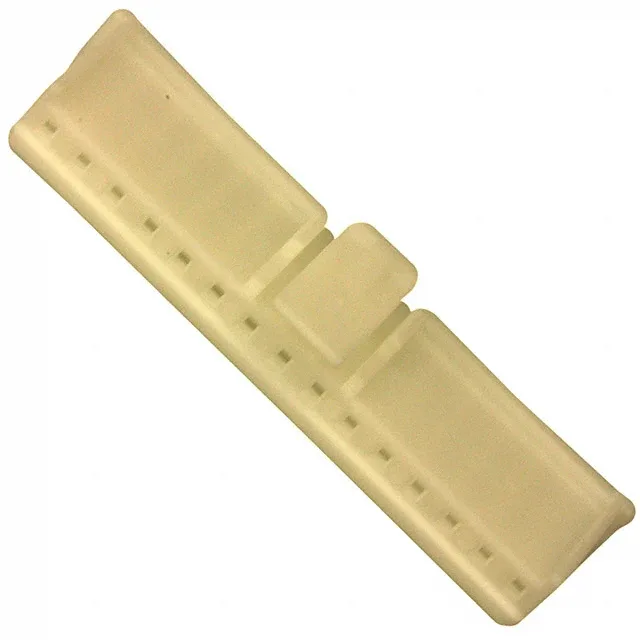

XAP-15V-1 — JST product photo
JST

JST XAP-15V-1 Receptacle Housing, 15 Pos, 2.50mm

MPNXAP-15V-1
Active

JST XA series receptacle housing, XAP-15V-1, 15 positions, 1 row, 2.50mm pitch, natural PA66, free hanging, latch lock, crimp termination, contacts not included.

$0.3200Ref. price · indicative, final on quote
XAP-15V-1 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

XAP-15V-1 Technical Specifications
ParameterValue
SeriesXA
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions15

Product details

The 15-Circuit Housing That Needs Its Own Terminals

The JST XAP-15V-1 is the 15-position receptacle housing from the XA series, built for wire-to-board or wire-to-wire harness applications where you need a positive-lock connection at a 2.50mm pitch. The housing itself is a shell — the crimp terminals that carry the current are ordered separately, a detail that trips up first-time buyers who expect a loaded connector. Rated for -25°C to 85°C operation, the natural PA66 body suits indoor equipment, control cabinets, and automotive interior harnesses where the latch lock keeps the pair mated under vibration.

Frequently asked questions

Does the XAP-15V-1 include contacts?

No — the listing explicitly notes 'Contacts Not Included'. You must order the matching JST crimp terminals separately for this receptacle housing.
