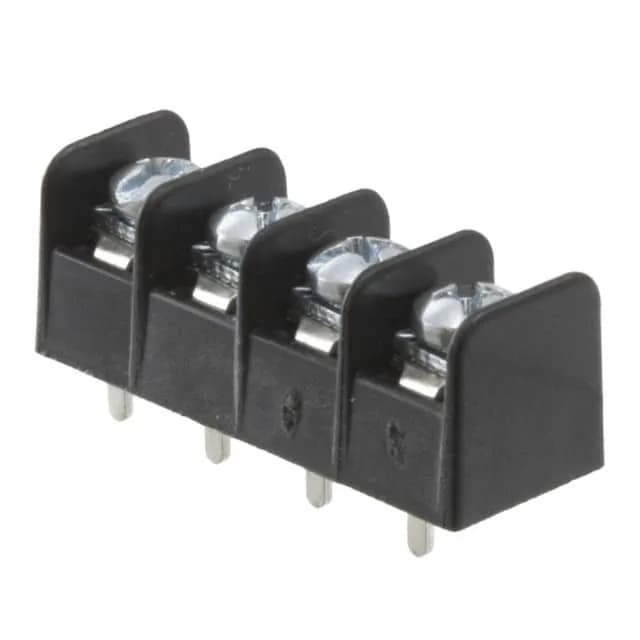

Molex Beau 38700 387007504 barrier strip, 4 circuits, 0.325" (8.26mm) pitch, 1 row, through-hole, top screw with captive plate, bottom PC pin, 20A, 300V, 14-22 AWG, black thermoplastic, -40°C to 130°C, bulk.
| Parameter | Value |
|---|---|
| Series | Beau 38700 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 4 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Pitch | 0.325\" (8.26mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 4 |
The 387007504 uses a screw with captive plate on top, while the 387006304 (same 4-circuit count and pitch) uses a standard screw without a captive plate. The captive plate on the 387007504 presses the wire against the barrier without the screw tip damaging strands — a practical advantage for stranded wire terminations in field service. Both are rated 300V and accept 14-22 AWG, but the 387006304 is rated 15A, not 20A.
The 387007504 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
