505110-2696
Molex
Box
Ref. price$0.5500
Lead time on requestGet quote ›

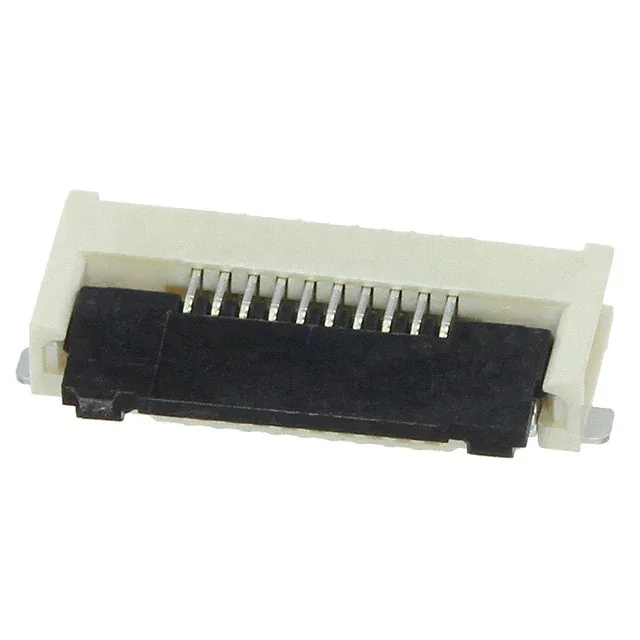

Molex 505110 Series
31 variants · Molex
About the Molex 505110 Series
The Molex 505110 Series series groups 31 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of Black, actuator material of Polyamide (PA), Nylon, Glass Filled and connector (Contact type) of Contacts, Bottom. Variants differ by cable end type, contact finish thickness and contact material, so you can match the exact cable end type your application requires using the selection guide below. All listed Molex 505110 Series part numbers are active and orderable.
Select a variant by
- Cable end type
- Straight · Straight, Tabbed · Tabbed, Tapered
- Contact finish thickness
- 1.97µin (0.050µm) · 2.00µin (0.051µm)
- Contact material
- Copper Alloy · Phosphor Bronze
- Features
- Solder Retention · Solder Retention, Zero Insertion Force (ZIF)
- FFC, FCB thickness
- - · 0.30mm
- Locking feature
- Flip Lock · Flip Lock, Backlock
- Mating cycles
- 20 · 25
- Operating temperature
- -40°C ~ 105°C · -40°C ~ 150°C
Shared specifications
- Actuator color
- Black
- Actuator material
- Polyamide (PA), Nylon, Glass Filled
- Connector (Contact type)
- Contacts, Bottom
- Contact finish
- Gold
- Current rating
- 0.5A
- Flat flex type
- FFC, FPC
- Height above board
- 0.075\" (1.90mm)
- Housing color
- Beige
- Housing material
- Liquid Crystal Polymer (LCP), Glass Filled
- Material flammability rating
- UL94 V-0
- Mounting type
- Surface Mount, Right Angle
- Package
- Tape & Reel (TR) Cut Tape (CT)
Variant comparison
| Parameter | 5051100492 | 5051100497 | 5051100697 | 5051100892 | 5051100992 | 5051101092 |
|---|---|---|---|---|---|---|
| Cable end type | Tabbed, Tapered | Straight | Straight, Tabbed | Tabbed, Tapered | Tabbed, Tapered | Tabbed, Tapered |
| Contact finish thickness | 1.97µin (0.050µm) | 2.00µin (0.051µm) | 2.00µin (0.051µm) | 1.97µin (0.050µm) | 1.97µin (0.050µm) | 1.97µin (0.050µm) |
| Contact material | Phosphor Bronze | Copper Alloy | Copper Alloy | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB thickness | 0.30mm | - | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Locking feature | Flip Lock, Backlock | Flip Lock | Flip Lock | Flip Lock, Backlock | Flip Lock, Backlock | Flip Lock, Backlock |
| Mating cycles | 25 | 20 | 20 | 25 | 25 | 25 |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
Request a quote on any Molex 505110 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Molex 505110 Series variants differ?
- Molex 505110 Series part numbers differ by cable end type, contact finish thickness, contact material and features. Use the selection guide above to pick by cable end type.
- How many Molex 505110 Series part numbers are listed?
- 31 Molex 505110 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Molex 505110 Series?
- Request a quote (RFQ) for any Molex 505110 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
