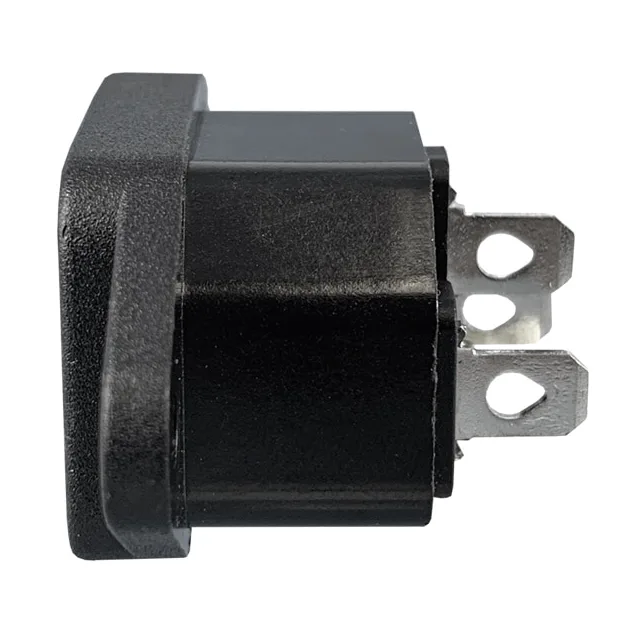

703W-00/06
Qualtek
Variable SizeSolder Eyelet703W
Ref. price$1.1800
Lead time on requestGet quote ›
Qualtek 703W Series
7 variants · Qualtek
About the Qualtek 703W Series
The Qualtek 703W Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common accomodates a fuse of No, connector type of Receptacle, Male Blades and current rating - appliance inlet of 10A. Variants differ by approval agency, features and mounting type, so you can match the exact approval agency your application requires using the selection guide below. All listed Qualtek 703W Series part numbers are active and orderable.
Select a variant by
- Approval agency
- CCC, CSA, UL, VDE · CSA, UL, VDE
- Features
- - · Front or Rear Side Mount
- Mounting type
- Panel Mount, Flange · Panel Mount, Flange; Through Hole, Right Angle
- Panel cutout
- Rectangular - 30.50mm x 22.50mm · Rectangular - 31.10mm x 23.30mm · Rectangular - 31.30mm x 23.30mm · Variable Size
- Panel thickness
- - · 0.118\" (3.00mm)
- Termination
- Quick Connect - 0.189\" (4.8mm) · Quick Connect - 0.250\" (6.3mm) · Solder · Solder Eyelet
Shared specifications
- Accomodates a fuse
- No
- Connector type
- Receptacle, Male Blades
- Current rating - appliance inlet
- 10A
- Current rating - circuit breaker
- -
- Current rating - filter
- -
- Filter type
- Unfiltered - Commercial
- Fuse holder, drawer
- -
- Ingress protection
- -
- Material flammability rating
- -
- Package
- Bulk
- Positions
- 3
- Switch features
- -
Variant comparison
| Parameter | 703W-00/06 | 703W-00/08 | 703W-00/54 | 703W-00/07 | 703W-00/53 | 703W-00/03 |
|---|---|---|---|---|---|---|
| Approval agency | CSA, UL, VDE | CSA, UL, VDE | CSA, UL, VDE | CSA, UL, VDE | CSA, UL, VDE | CSA, UL, VDE |
| Features | Front or Rear Side Mount | Front or Rear Side Mount | - | Front or Rear Side Mount | - | - |
| Mounting type | Panel Mount, Flange | Panel Mount, Flange | Panel Mount, Flange; Through Hole, Right Angle | Panel Mount, Flange | Panel Mount, Flange; Through Hole, Right Angle | Panel Mount, Flange |
| Panel cutout | Variable Size | Variable Size | Rectangular - 31.10mm x 23.30mm | Variable Size | Rectangular - 31.30mm x 23.30mm | Rectangular - 30.50mm x 22.50mm |
| Panel thickness | - | - | 0.118\" (3.00mm) | - | 0.118\" (3.00mm) | - |
| Termination | Solder Eyelet | Quick Connect - 0.250\" (6.3mm) | Solder | Quick Connect - 0.189\" (4.8mm) | Solder | Quick Connect - 0.189\" (4.8mm) |
Request a quote on any Qualtek 703W Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Qualtek 703W Series variants differ?
- Qualtek 703W Series part numbers differ by approval agency, features, mounting type and panel cutout. Use the selection guide above to pick by approval agency.
- How many Qualtek 703W Series part numbers are listed?
- 7 Qualtek 703W Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Qualtek 703W Series?
- Request a quote (RFQ) for any Qualtek 703W Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
