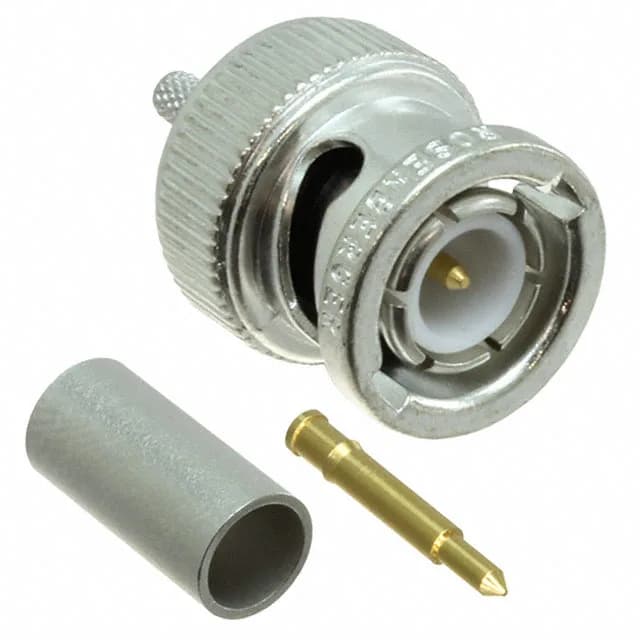

Rosenberger 51S107-803N5
MPN51S107-803N5
Active
$8.7100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 400 V |
| Frequency - max | 10 GHz |
| Cable group | RG-316 |
| Operating temperature | -45°C ~ 85°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Bronze |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | White Bronze |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
