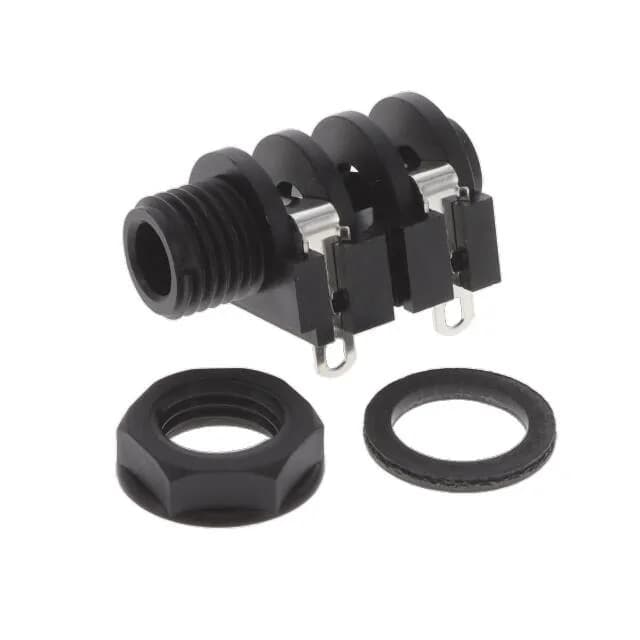

Same Sky MJ-63032A
MPNMJ-63032A
Active
AUDIO JACK, 6.35 MM, HORIZONTAL,
$1.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Contact material - plating | Silver |
| Gender | Female |
| Features | Mounting Hardware, Thread Lock |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Connector size | 7/16\"-20 |
| Signal lines | Mono |
| Actual diameter | 0.252\" (6.40mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
