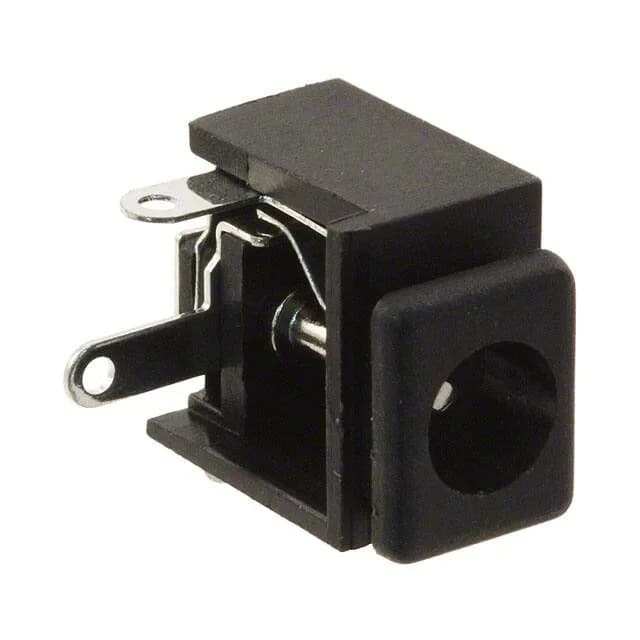

Same Sky PJ-008A
MPNPJ-008A
Active
CONN PWR JACK 2X5.5MM SOLDER
$1.6800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 2.5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, 65 Mn Steel |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.354\" (9.00mm) |
| Contact material - plating | Copper Alloy, Phosphor Bronze, Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Manufacturer | Same Sky |
| Actual diameter | 0.079\" (2.00mm ID), 0.224\" (5.70mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
