Same Sky PP-016
MPNPP-016
Active

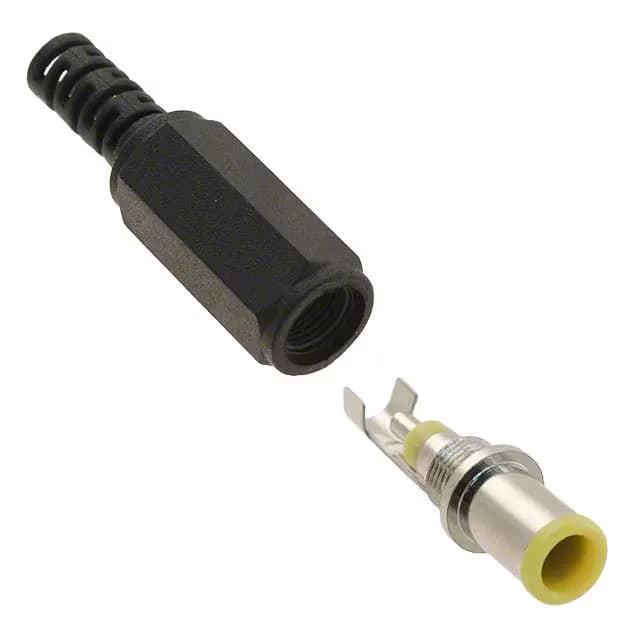

CONN PWR PLUG 1.4X4.3X6.5MM SLDR
$1.7100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 24VDC |
| Current rating | 6 A |
| Operating temperature | 0°C ~ 40°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polyethylene (PE) |
| Insulation color | Yellow |
| Mating length (Depth) | 0.374\" (9.50mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Features | Strain Relief |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Manufacturer | Same Sky |
| Actual diameter | 0.055\" (1.40mm ID), 0.256\" (6.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.40mm ID (0.055\"), 4.30mm ID (0.169\"), 6.50mm OD (0.256\") EIAJ-5 |
