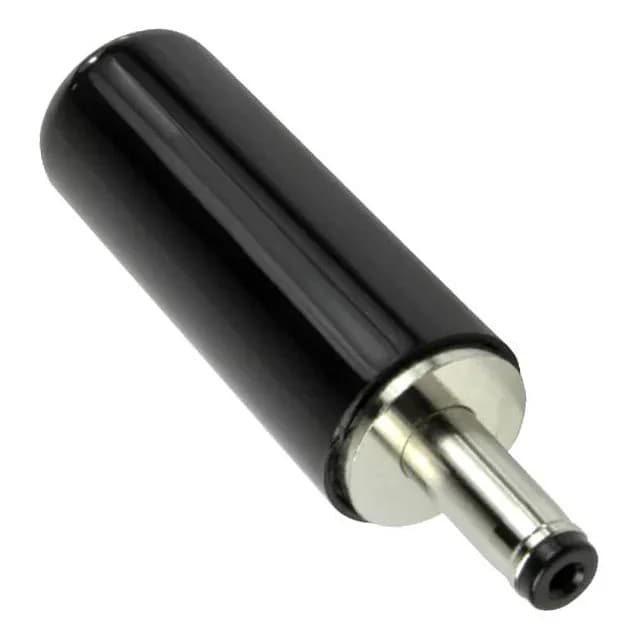

Same Sky PP3-038D
MPNPP3-038D
Active
POWER PLUG, 1.35 X 3.8 X 9.5 MM,
$1.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 20VDC |
| Current rating | 4 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Black |
| Mating length (Depth) | 0.374\" (9.50mm) |
| Contact material - plating | Nickel |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Features | Cover |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Manufacturer | Same Sky |
| Actual diameter | 0.053\" (1.35mm ID), 0.150\" (3.80mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.35mm ID (0.053\"), 3.80mm OD (0.150\") |
