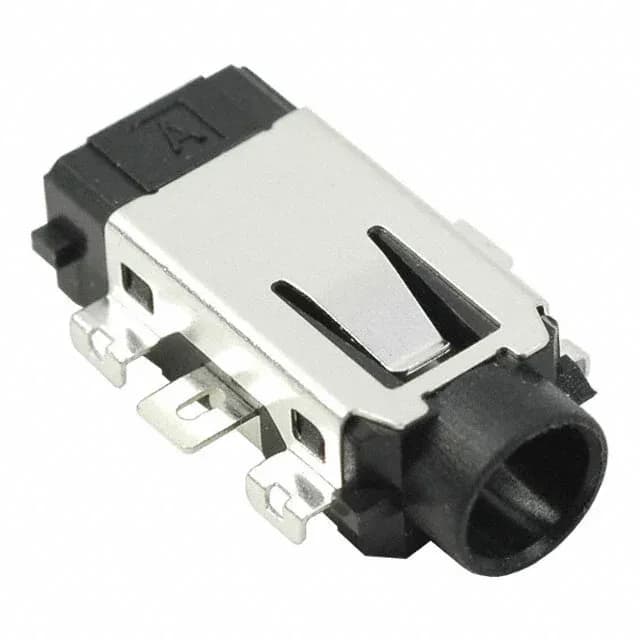

Same Sky SJ-3502-SMT-TR
MPNSJ-3502-SMT-TR
Active
CONN JACK STEREO 3.5MM SMD R/A
$1.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Board Cutout, Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Copper Alloy, Steel |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Contact material - plating | Silver |
| Gender | Female |
| Features | Board Lock |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
