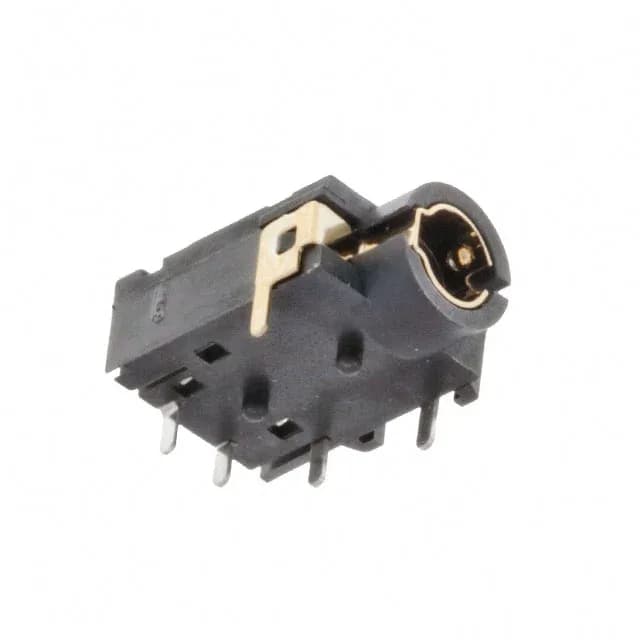

CUI Devices SJ-43514 Phone Jack, 4 Cond TRRS, 3.5mm, R/A
MPNSJ-43514
Active
CUI Devices SJ series phone jack, order code SJ-43514, 4 conductors (TRRS), 3.50mm industry recognized mating diameter, 1 A, 12 VDC, through-hole right-angle, solder termination, unshielded.
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -20°C ~ 85°C |
| Body color | Black |
| Contact material | Copper Alloy, Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Gold, Tin |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
