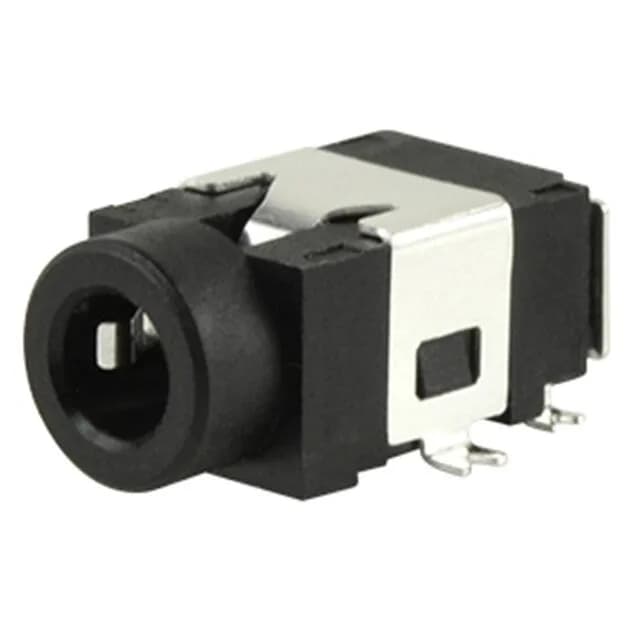

Same Sky SJ2-3594A-SMT-TR
MPNSJ2-3594A-SMT-TR
Active
AUDIO JACK, 3.5 MM, RT, 4 CONDUC
$1.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSJ2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ2 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Copper Alloy |
| Gender | Female |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
