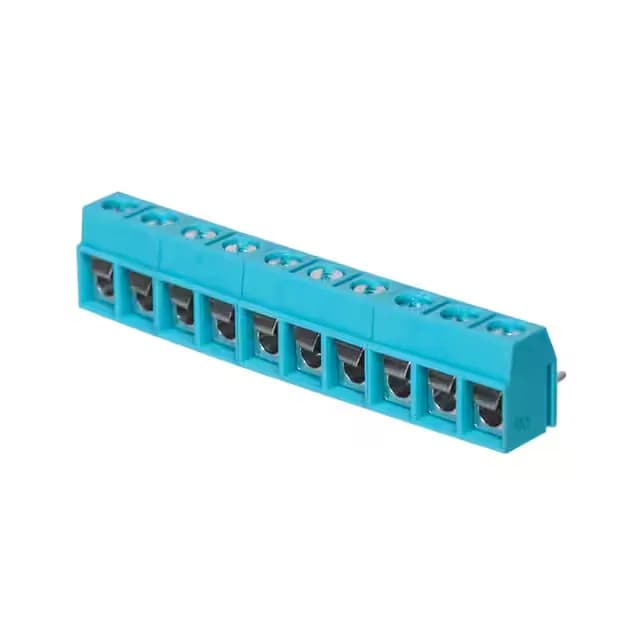

Same Sky TB002V-500-10BE
MPNTB002V-500-10BE
Active
TERMINAL BLOCK, SCREW TYPE, 5.00
$1.5400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTB002V-500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TB002V-500 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 12-22 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Housing material | Polybutylene Terephthalate (PBT) |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Copper Alloy - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Features | Interlocking (Side) |
| Package | Box |
| Manufacturer | Same Sky |
| Screw thread | M2.5 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 10 |
