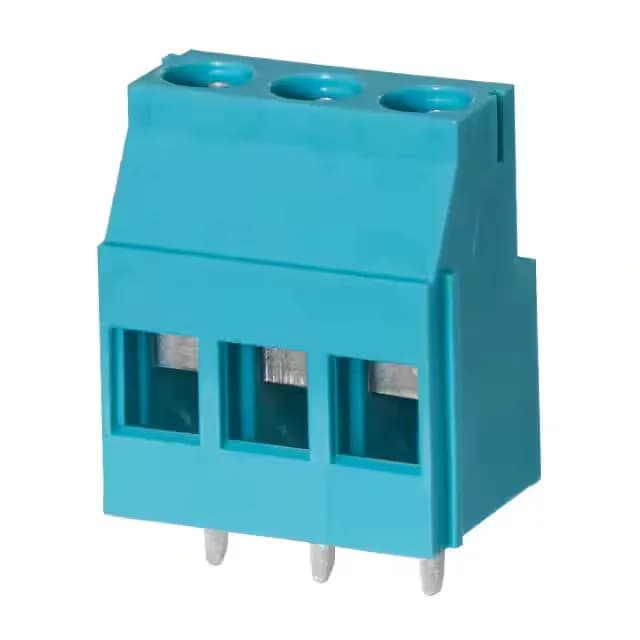

Same Sky TB010-508-03BE
MPNTB010-508-03BE
Active
TERMINAL BLOCK, SCREW TYPE, 5.08
$1.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTB010-508
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TB010-508 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 20 A |
| Wire gauge | 12-26 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Copper Alloy - Nickel Plated |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Copper Alloy - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Features | Interlocking (Side) |
| Package | Bag |
| Manufacturer | Same Sky |
| Screw thread | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
