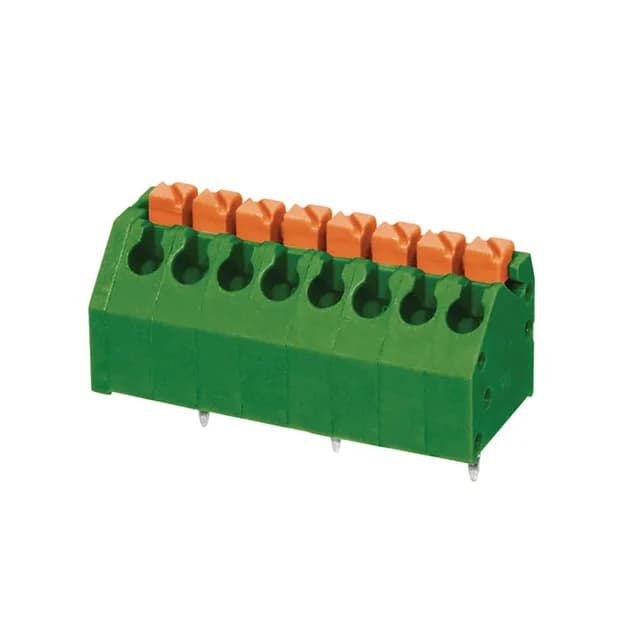

Same Sky TBL002A-350-08GR-2OR
MPNTBL002A-350-08GR-2OR
Active
$1.4300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBL002A-350 |
| Mounting | Through Hole, Kinked Pin |
| Voltage | 300 V |
| Current | 2 A |
| Wire gauge | 20-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Contact material - plating | Phosphor Bronze - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
| Features | Interlocking (Side), Push Button Actuated |
| Package | Tray |
| Manufacturer | Same Sky |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 8 |
