Samtec Inc. BNC5-J-P-GN-RA-BH2D — RF Cable Assemblies

BNC5-J-P-GN-RA-BH2D BNC Jack, 50 Ohm, 4 GHz, Right Angle

MPNBNC5-J-P-GN-RA-BH2D
Active

BNC5-J-P-GN-RA-BH2D, BNC jack, female socket, 50 Ohm, 4 GHz max, right-angle through-hole, panel mount bulkhead, gold-plated phosphor bronze center contact, zinc body nickel finish, includes lockwasher and nut.

$11.5000Ref. price · indicative, final on quote
Samtec Inc. BNC5-J-P-GN-RA-BH2D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

BNC5-J-P-GN-RA-BH2D specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 125°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageTray
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

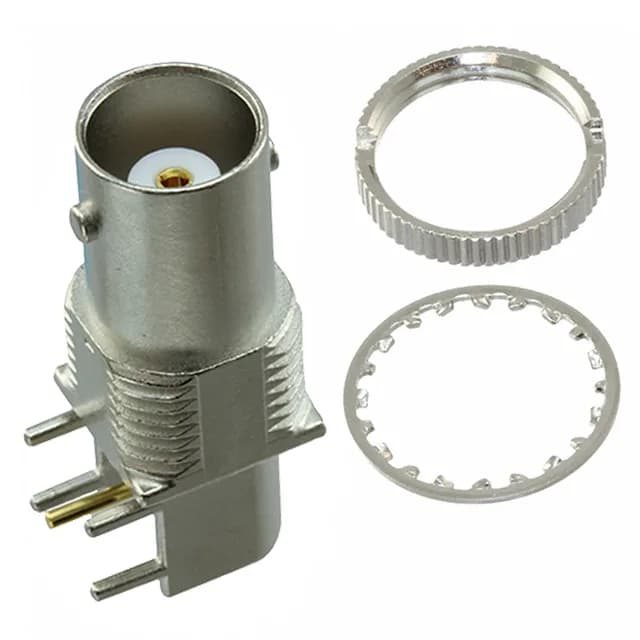

The BNC5-J-P-GN-RA-BH2D: The included lockwasher and nut save a separate hardware order — you get the connector, the lockwasher to prevent vibration loosening, and the nut for the panel face in one tray-pack. Rated to 4 GHz, this jack covers the full BNC band for analog video and common RF links like GPS and ISM bands. Gold-plated phosphor bronze center contact gives reliable signal transfer through repeated mating cycles — not the cycle life of beryllium copper, but adequate for field-service reconnection where you're mating and unmating a few dozen times over the equipment's life.

What's the difference from the straight through-hole version?

The BNC5-J-P-GN-ST-TH2D is the straight through-hole sibling — same 50 Ohm impedance, same 4 GHz ceiling, same zinc body and gold-plated center contact. The only difference is the orientation: the straight version exits perpendicular to the PCB, while this right-angle version runs parallel.

How does it compare to the 75 Ohm BNC7T?

The body is brass instead of zinc, and the center contact is copper alloy rather than phosphor bronze. The 75 Ohm impedance is for broadcast video and cable TV distribution, not 50 Ohm test equipment.

Frequently asked questions

What is the impedance of BNC5-J-P-GN-RA-BH2D?

50 Ohms — the standard impedance for test equipment, RF instrumentation, and most data acquisition systems. It mates with any 50 Ohm BNC plug and cable (RG58, RG213, LMR-400).

Does BNC5-J-P-GN-RA-BH2D come with mounting hardware?

Yes, the package includes three pieces: the connector, a lockwasher, and a nut. The lockwasher prevents the nut from loosening under vibration, and the nut secures the connector to the panel from the front side.
