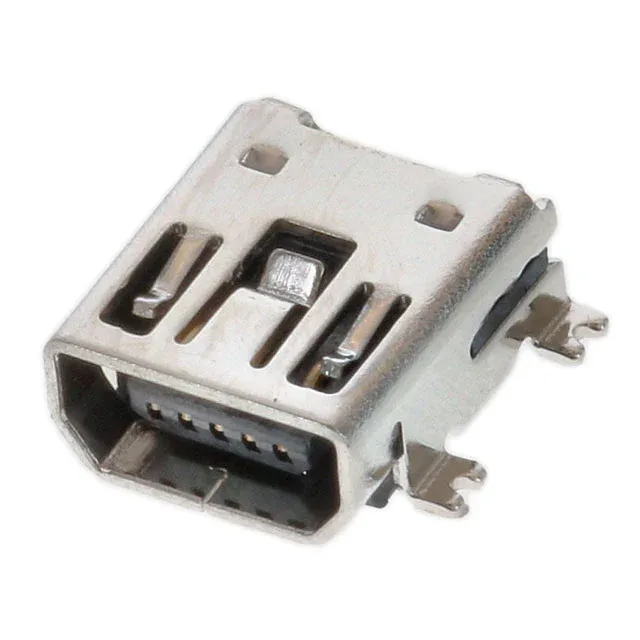

Samtec MUSB-05-S-AB-SM-A-TR Mini USB AB Receptacle, 5 Pos

MPNMUSB-05-S-AB-SM-A-TR
Active

Samtec MUSB series mini USB AB receptacle, order code MUSB-05-S-AB-SM-A-TR, 5 contacts, single port, gold-plated contacts, 30 V, surface-mount right-angle, solder termination, unshielded.

$2.02Ref. price · indicative, final on quote
MUSB-05-S-AB-SM-A-TR datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MUSB-05-S-AB-SM-A-TR Technical Specifications
ParameterValue
SeriesMUSB
Mounting typeSurface Mount, Right Angle
Connector typeUSB - mini AB
Voltage - rated30V
Positions5
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
ShieldingUnshielded
TerminationSolder
Mating cycles1500
Contact finishGold
Number of ports1

Product details

Mini USB AB receptacle for board-edge routing

The MUSB-05-S-AB-SM-A-TR is Samtec's 5-contact mini USB AB receptacle in the MUSB series, designed for surface-mount right-angle placement on the board edge. Gold-plated contacts rated 30 V and 1500 mating cycles support repeated field connection in USB 2.0 signal paths.

Position count and packaging across the MUSB series

Within the MUSB series the MUSB-05-S-AB-SM-A-TR shares the same 5-contact count, gold plating, and 30 V rating as the MUSB-05-S-AB-SM-A-K-TR (Tape & Reel with pick-and-place feature) and the MUSB-05-S-AB-SM-A (tray packaging). For a mini B interface the MUSB-05-F-B-SM-A-TR provides a functionally similar receptacle with the same 5 positions, gold contacts, and 1500 mating cycles but mates only with mini B plugs.

Frequently asked questions

What is the difference between MUSB-05-S-AB-SM-A-TR and MUSB-05-S-AB-SM-A-K-TR?

Both are 5-contact mini USB AB receptacles with identical electrical ratings and gold plating. The MUSB-05-S-AB-SM-A-K-TR adds a pick-and-place feature for automated assembly; the MUSB-05-S-AB-SM-A-TR does not.

Does the MUSB-05-S-AB-SM-A-TR mate with a mini B plug?

The MUSB-05-S-AB-SM-A-TR is a mini USB AB receptacle, which accepts both mini A and mini B plugs. For a dedicated mini B interface, the MUSB-05-F-B-SM-A-TR is a functionally equivalent option.
