Samtec Inc. MUSB-05-S-AB-SM-A — USB / HDMI Cable Assemblies

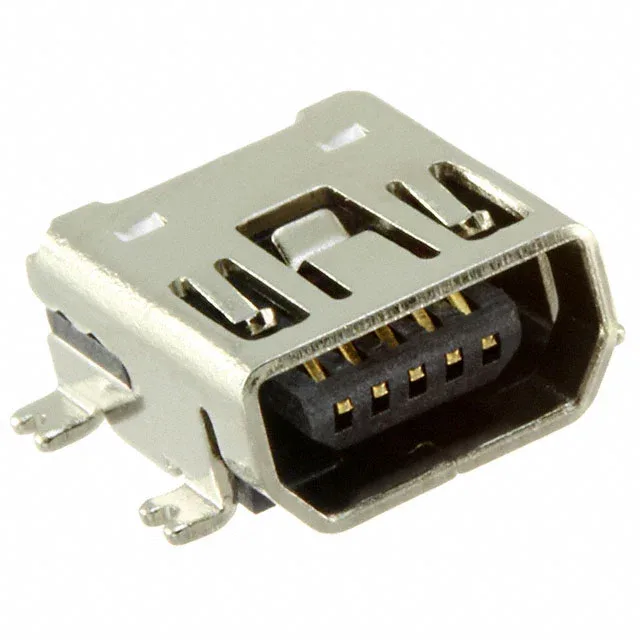

Samtec MUSB-05-S-AB-SM-A USB 2.0 Mini AB Receptacle

MPNMUSB-05-S-AB-SM-A
Active

Samtec MUSB series USB 2.0 mini AB receptacle, order code MUSB-05-S-AB-SM-A, 5 contacts, gold-plated contacts, 30 V rated, 1500 mating cycles, surface-mount right-angle, solder termination, unshielded, tray package.

$1.61Ref. price · indicative, final on quote
Samtec Inc. MUSB-05-S-AB-SM-A datasheet (PDF)
RoHSROHS3 Compliant
SeriesMUSB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

MUSB-05-S-AB-SM-A key specifications
ParameterValue
SeriesMUSB
MountingSurface Mount, Right Angle
Connector typeUSB - mini AB
Voltage - rated30V
Positions5
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray

All specifications

MUSB-05-S-AB-SM-A additional specifications
ParameterValue
FeaturesBoard Guide, Solder Retention
ShieldingUnshielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Contact system and mating durability

The MUSB-05-S-AB-SM-A is a 5-contact USB 2.0 mini AB receptacle from Samtec's MUSB series, rated for 1500 mating cycles with gold-plated contacts.

Board fit and mounting

Mounts surface-mount right-angle with solder termination, horizontal to the board edge. Board guide and solder retention features aid alignment and hold during reflow.

Position count and connector type across the series

Within the MUSB series the MUSB-05-S-AB-SM-A is the 5-contact mini AB receptacle. Siblings include the MUSB-05-S-B-SM-A, a mini B receptacle with the same 5 contacts, gold plating, and 1500-cycle rating, and the MUSB-05-S-AB-SM-A-K-TR, identical electrically but supplied on Tape & Reel with pick-and-place features.
