Samtec Inc. ESD-111-G-23
MPNESD-111-G-23
Active

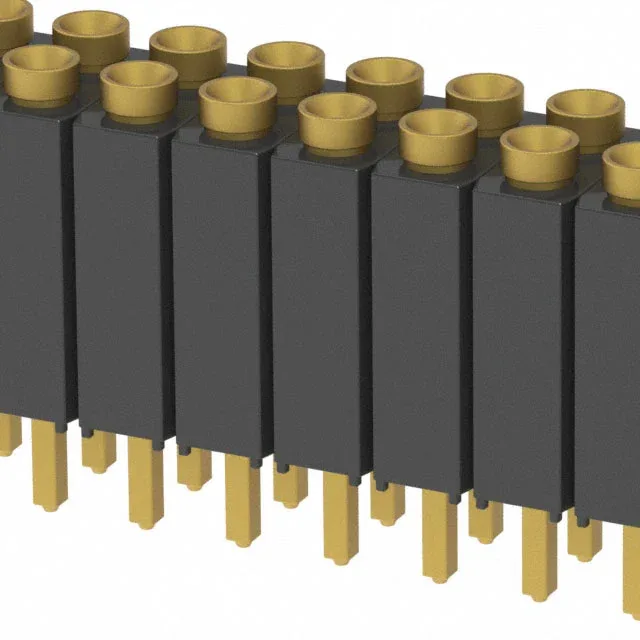

CONN SOCKET 22POS 0.1 GOLD PCB
$16.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesESD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ESD |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Elevated Socket |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
