Samtec Inc. ESHF-105-01-L-D-SM-TR — Pin Headers

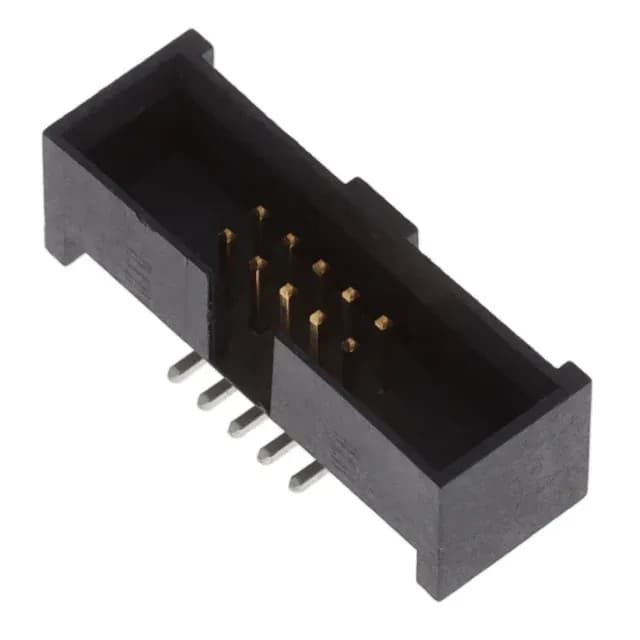

Samtec Inc. ESHF-105-01-L-D-SM-TR

MPNESHF-105-01-L-D-SM-TR
Active

CONN HEADER SMD 10POS 1.27MM

$4.5400Ref. price · indicative, final on quote
Samtec Inc. ESHF-105-01-L-D-SM-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesESHF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

ESHF-105-01-L-D-SM-TR key specifications
ParameterValue
SeriesESHF
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Operating temperature-55°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialLiquid Crystal Polymer (LCP)
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

ESHF-105-01-L-D-SM-TR additional specifications
ParameterValue
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions10
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.120\" (3.05mm)
Contact finish thickness - mating10.0µin (0.25µm)
