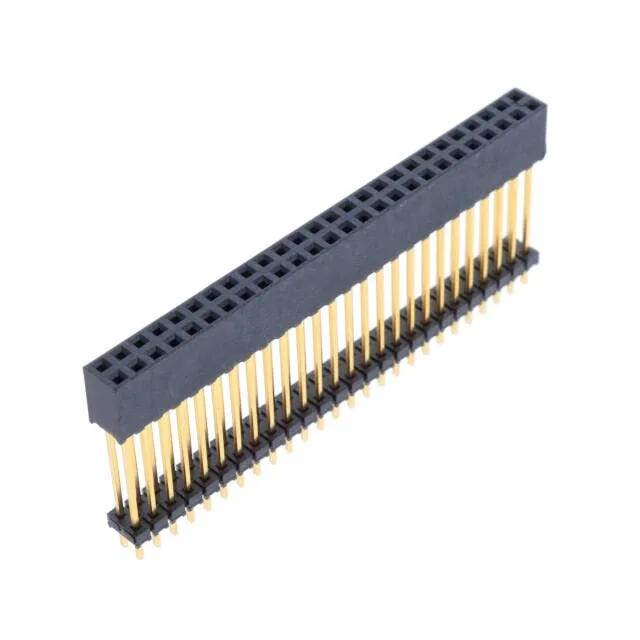

Samtec Inc. ESQT-126-02-G-D-750
MPNESQT-126-02-G-D-750
Active
CONN SOCKET 52POS 0.079 GOLD PCB
$22.09Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesESQT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ESQT |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Elevated Socket |
| Fastening type | Push-Pull |
| Current rating | 4.5A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.750\" (19.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 52 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
