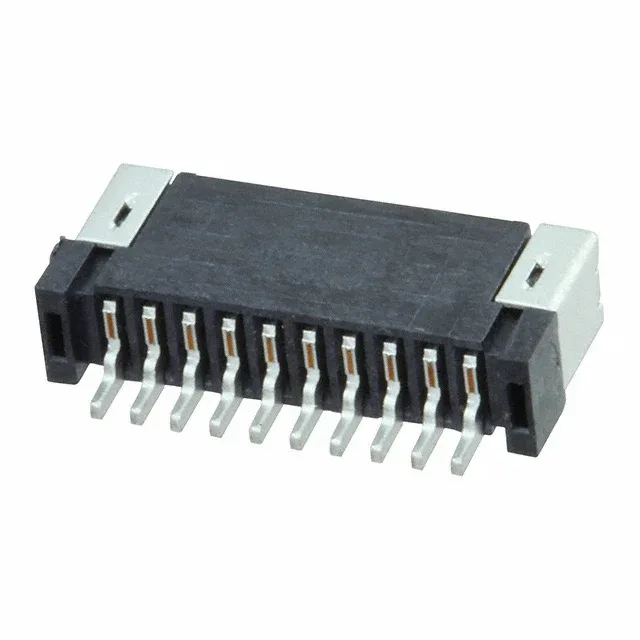

Samtec Inc. FC1-10-02-T-WT
MPNFC1-10-02-T-WT
Active
1MM SINGLE ROW CONNECTOR
$2.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFC1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FC1 |
| Mounting | Surface Mount, Right Angle |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Current rating | 2A per Contact |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
