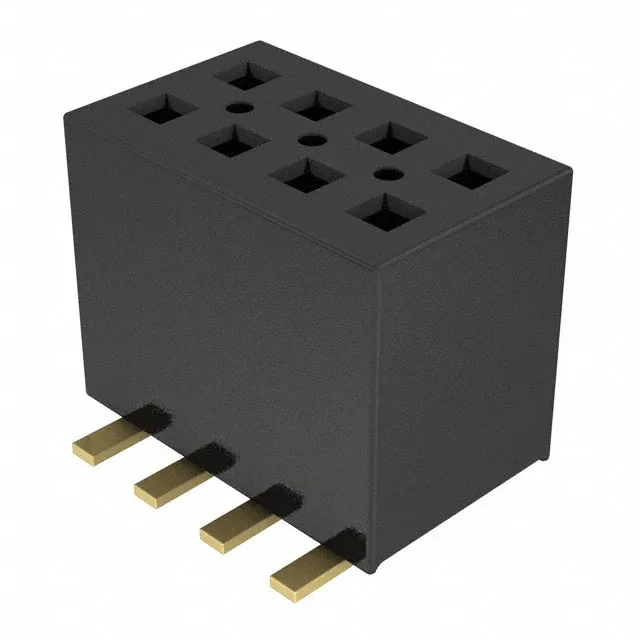

Samtec Inc. FLE-104-01-G-DV-TR
MPNFLE-104-01-G-DV-TR
Active
CONN RCPT 8POS 0.05 GOLD SMD
$2.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFLE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FLE |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.172\" (4.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 8 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
