Samtec Inc. FMPT-08-01-L-S-V-LC
MPNFMPT-08-01-L-S-V-LC
Active

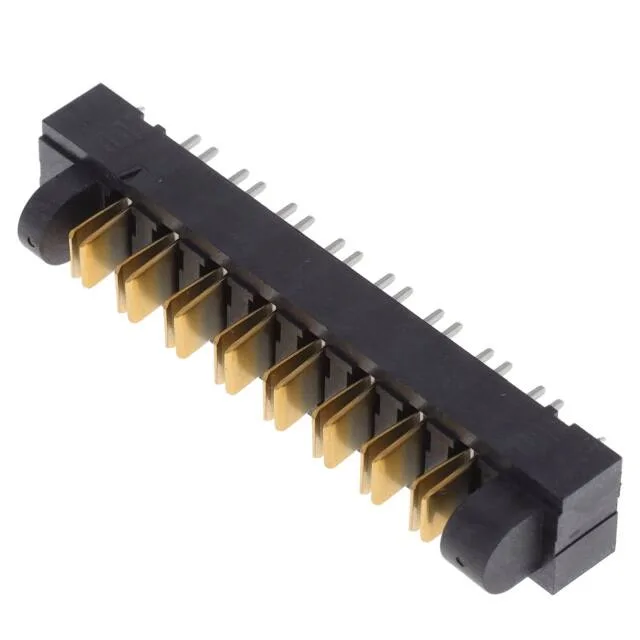

FLEX MATE MINI POWER TERMINAL
$12.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPowerStrip™ 30 FMPT
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PowerStrip™ 30 FMPT |
| Mounting | Through Hole |
| Connector type | Header, Male Blades |
| Voltage rating | 742 V |
| Current rating | 30 A |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Liquid Crystal Polymer (LCP) |
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 8 |
| Contact finish thickness | 10.0µin (0.25µm) |
