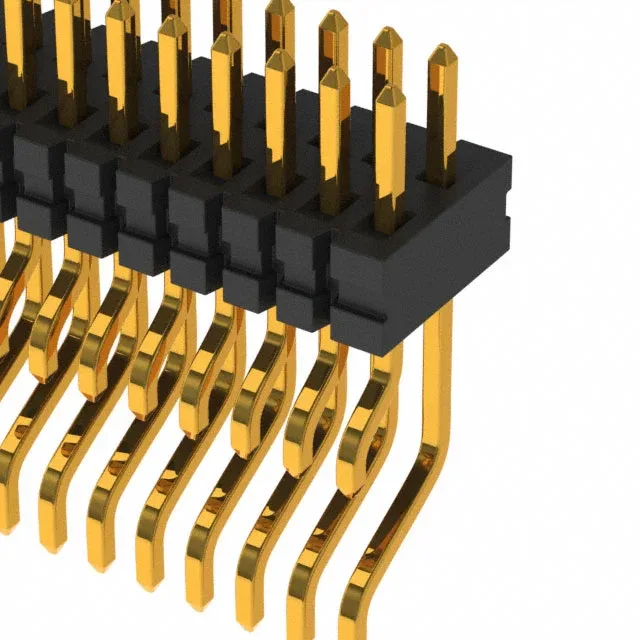

Samtec Inc. FTE-190-01-G-DH
MPNFTE-190-01-G-DH
Active
CONN HEADER SMD R/A 180P 0.8MM
$43.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2.7A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.120\" (3.05mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 180 |
| Row spacing - mating | 0.047\" (1.20mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.075\" (1.90mm) |
| Contact finish thickness - post | 3.00µin (0.076µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
