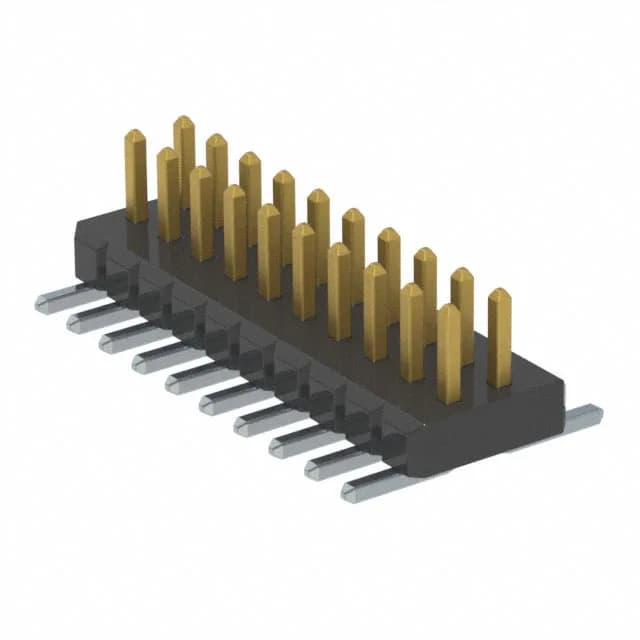

Samtec Inc. FTM-110-03-L-DV-P
MPNFTM-110-03-L-DV-P
Active
CONN HEADER SMD 20POS 1MM
$2.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTM
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 2.8A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.038\" (0.97mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.065\" (1.65mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
