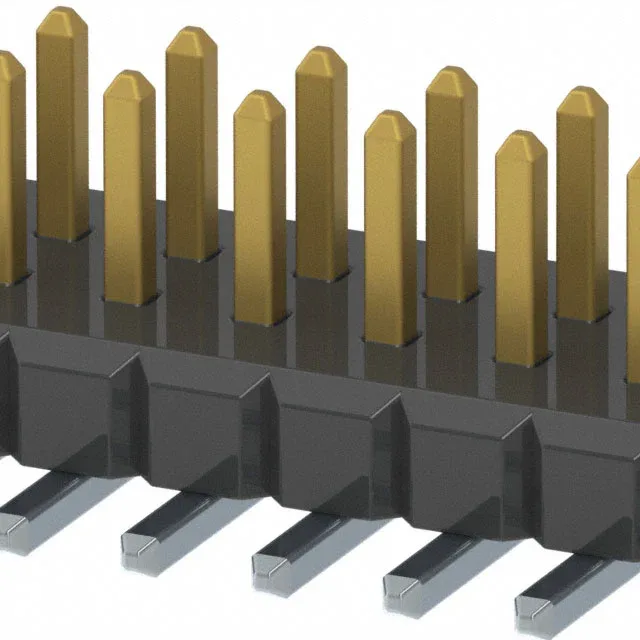

Samtec Inc. FTM-112-03-L-DV
MPNFTM-112-03-L-DV
Active
CONN HEADER SMD 24POS 1MM
$6.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 2.8A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.038\" (0.97mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.065\" (1.65mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
