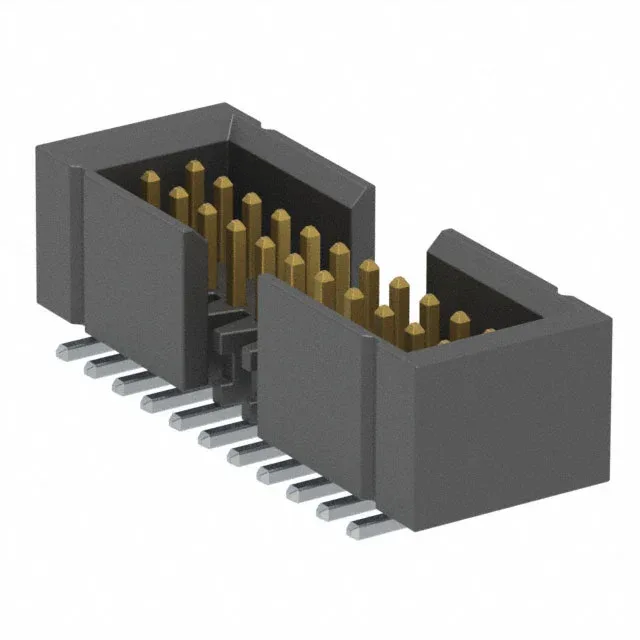

Samtec Inc. FTMH-111-03-L-DV-ES-P-TR
MPNFTMH-111-03-L-DV-ES-P-TR
Active
CONN HEADER SMD 22POS 1MM
$6.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFTMH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FTMH |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2.8A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | End Shrouds, Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.039\" (1.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.065\" (1.65mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
